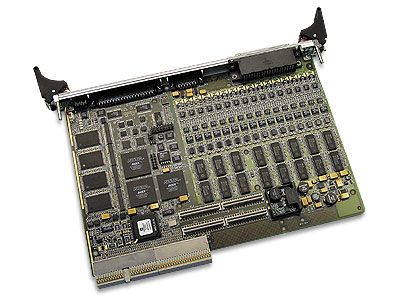

ICS-710

32-ch., 216 kHz/ch., 24-bit data acquisition board is designed for sonar, acoustics and test and measurement applications. ICS-710 is a complete data acquisition solution packaged in a high performance 6U CompactPCI form factor.
ICS-710

This product entered a Restricted Production Phase (RPP) on August 10, 2012

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

We recommend the following alternative solutions:

Overview

Designed for sonar, acoustics and test and measurement applications, the ICS-710 is a complete data acquisition solution. It offers thirty-two differential input channels, onboard programmable anti-aliasing filter and gain, 24-bit sigma delta ADCs, simultaneous sampling at rates of up to 216 kHz/channel and a signal-to-noise ratio of close to 90 dB. The product features the new FPDP II 400 MBytes/s front panel interface in addition to a 64-bit/66 MHz CompactPCI PICMG 2.0 R3.0 Hot-Swap interface. These features make the ICS-710 an ideal choice for complex data acquisition applications such as sonar, vibration analysis, digital audio and precision test and measurement. As many as thirty-two ICS-710 boards can be operated synchronously to ensure simultaneous sampling of over 1024 channels. The ICS-710 is joined by the ICS-725, which is the DAC counterpart.





  • 32 differential input channels
  • 216 kHz/ch., 24-bit resolution
  • 32 synchronous boards for simultaneous sampling
  • 64-bit, 66 MHz CompactPCI PICMG 2.0, Rev. 3.0 hot-swappable
  • FPDP II 400 MBytes/sec interface
  • Software selectable full scale input
  • 6U CompactPCI data acquisition card
  • Sonar, acoustics and test & measurement applications
  • Sensor Processing Resource Center





Specifications

Channels
32
Form Factor
cPCI 6U
Function
Analog Input
Max. Sampling/Conversion Frequency
216 kHz/ch.
Memory
4 - 16 MB
Resolution
24-bit
