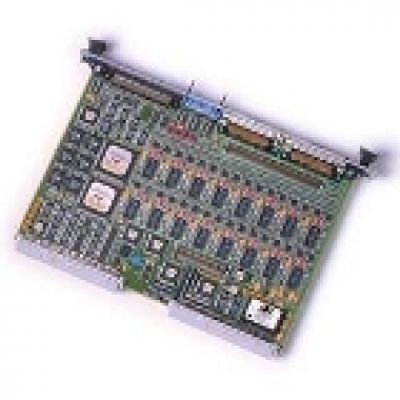

ICS-110BL

32-ch., 108 kHz/ch., 24-Bit, Sigma-Delta ADC board for applications in sonar, digital audio, vibration analysis & test & measurement. Users can implement a system with over 500 ch. of signal conditioning and data acquisition in a single VMEbus enclosure.

ICS-110BL

This product reached the end of its lifecycle (end-of-life) on April 1, 2011

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

We recommend the following alternative solutions:

Overview


The ICS-110BL, a reduced power consumption version of the popular ICS-110B product, is designed to provide a complete data acquisition solution in a single 6U VMEbus slot. The ICS-110BL motherboard includes thirty-two 24-bit, 108 kHz/channel sigma-delta ADCs. The ICS-110BL includes a daughter board that provides 2-pole anti-alias filtering consistent with the anti-aliasing requirements of the sigma-delta ADCs, programmable gain of up to 31.5 dB in 0.5 dB steps, and internal test signal generation and injection capabilities for performance monitoring and fault location (PM/FL).

 Designed for applications in sonar, digital audio, vibration analysis and test and measurement, the ICS-110BL board combines the ultimate in analog and digital technologies to offer unparalleled features and performance. The high channel density of this board allows the user to implement a system with over 500 channels of signal conditioning and data acquisition (with simultaneous sampling at high sample rates) in a single VMEbus enclosure.





  • External or internal clock and trigger
  • Internal clock programmable in steps of less than 20 Hz at output frequency
  • Software selectable high pass filter for low frequency rejection
  • Optional 16-bit mode of operation
  • Simultaneous sampling at rates up to 100 kHz/ch.
  • 24-bit sigma-delta A/D converters
  • Up to 32 differential input channels
  • Greater than 105 dB signal-to-noise ration (including harmonic distortion and crosstalk)
  • 64kword onboard storage
  • VME, VSB abd FPDP interfaces
  • Sensor Processing Resource Center





Specifications

Form Factor
VME 6U
Function
Analog Input
Channels
32
Max. Sampling/Conversion Frequency
108 kHz/ch.
Memory
128 KB
Resolution
24-bit

Accessories

  • ICS-7230 - General purpose FPDP repeater. This is a 6U VMEbus companion product that provides the ability to extend FPDP and Multi-Board Synchronization in multiple chassis configurations.
  • DRV-110B-SSS & DRV-110B-VXW - Software device drivers for VxWorks and Solaris operating systems.
  • CN-FPDP - FPDP Connector
  • CN-110B-P6P7 - Analog Input Connector
  • CN-110B-P4 - Local Bus/Sync Connector
  • CBL-1053 - Analog link cable
  • CBL-1054 - Analog input cable
