FMC164 FPGA Mezzanine Card

Analog input

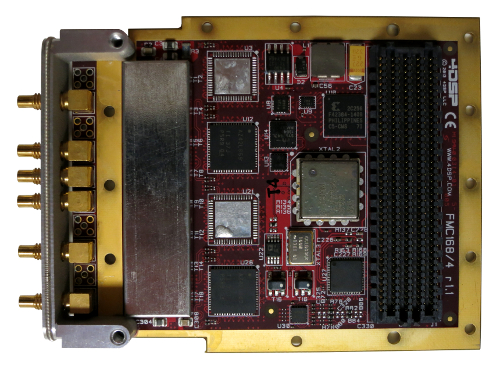

FMC164

Overview


The FMC164 is a digitizer FMC featuring four ADC channels with 16-bit resolution and a 250Msps sampling rate per channel.

With a flexible clock generation and distribution scheme, the FMC164 allows control of sampling frequency and analog input gain through serial communication with a carrier card.

The FMC164 design is based on the TI ADS42LB69 dual channel 16-bit 250 Msps A/D, is equipped with power supply and temperature monitoring, and offers several power-down modes to switch off unused functions.

Board Support Package

Our Board Support Package helps customers get their hardware implementation underway as quickly as possible by providing reference designs, the Stellar IP FPGA development tool, and the 4FM GUI user interface for controlling and monitoring the hardware, as well as other supporting elements.

Specifications

Form Factor
FMC
Cooling
Air, Conduction
Function
Analog Input
Data Rate
250 Msps
Channels
4
Coupling
AC or DC
Resolution
16-bit
FMC Connector
LPC
Signaling
LVDS
