daq8580 FMV Compression System

Rugged multichannel FMV compression for SWaP-constrained applications

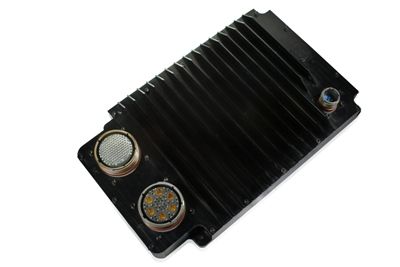

daq8580 FMV Compression System

Overview

Rugged, Small, Lightweight, Powerful and Flexible

The Daq8580 is designed to address the challenges of processing, transporting and storing full motion video through video encoding, and can interface with a wide variety of analog and digital I/O and process standard video formats up to 1080p30 as well as computer resolutions up to 1600x1200.

Video Compression Module Enhances Connectivity and Flexibility

The unit allows very high quality moving images to be captured, transmitted and stored with very low latency and with minimal consumption of precious bandwidth or disk space, allowing actionable information to be delivered more quickly and efficiently.



Abaco Lightning:

Bringing ‘off-the-shelf’ back to COTS.

More Details

Specifications

Channels
2HD or 4SD
Chip Set:
TI TMS320DM6467 DSP
Conformal Coating
Yes
Cooling
Conduction
Environmental
MIL-STD-704F, MIL-STD-1275B
Extended Temperature Range
Yes
Form Factor
Standalone
Function
Video Compression
I/O
Analog Video, Digital Video, Ethernet, RS-422, Cameralink
Max. Sampling/Conversion Frequency
60 fps
Operating System (OS) Support
Linux
Operating Temp
-40°C to +85°C
Processor
Dual ARM 9
Slots
N/A
Weight lb (kg)
4.9 (2.25)

Radar Solutions

Leading edge technologies coupled with extensive experience bring the products and expertise you need for advanced radar solutions.

More Details

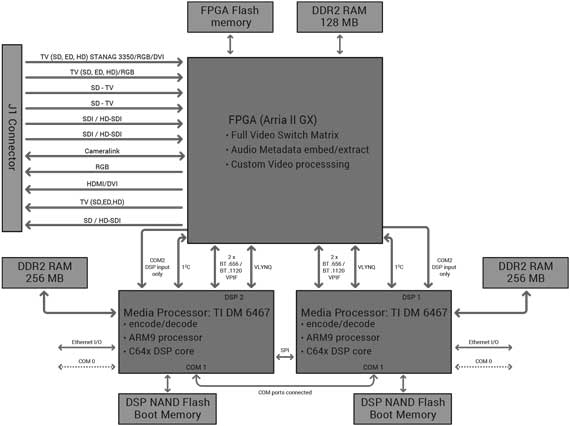

Block Diagram
