CR5

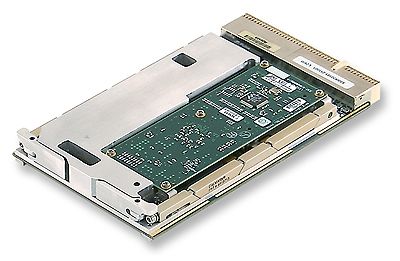

CR5 is a rugged 3U CompactPCI Intel Single Board Computer offering a Core 2 Duo LV processor that features 65 nm technology

CR5

This product reached the end of its lifecycle (end-of-life) on September 30, 2014

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

We recommend the following alternative solutions:

Overview


CR5 is a 3U CompactPCI SBC offering an Intel Core 2 Duo LV processor that features 65 nm technology with processing speeds up to 1.5 GHz for high performance computing. This Intel-based single board computer delivers two complete execution cores in one processor package that share a 667 MHz front-side bus (FSB) and 4 MB of L2 cache.

The 3100 MICH supports up to 2 Gbyte DDR2 SDRAM with ECC, 1-lane and 4-lane PCI-express Interfaces, two USB 2.0 ports, two COM ports, and one internal and two external serial ATA ports. The CR5 also features a custom mezzanine board providing CompactFlash and SVGA. For general status and control capability, the CR5 provides eight programmable General-purpose I/O (GPIO) lines with separate Interrupts and Interrupt masking.





  • Intel Core 2 Duo LV @ 1.5 GHz
  • Intel Core Duo LV @ 1.66 GHz or 1.2 GHz
  • Low Power Celeron Option @ 1.06 GHz
  • Up to 2 GB DDR SDRAM w/ECC
  • 2x Gigabit Ethernet
  • Air and Conduction Cooled





Specifications

Form Factor
cPCI 3U
Processor
Intel Core 2 Duo @ 1.5 GHz
# Expansion Slots
0
Maximum Memory
Up to 2 GB DDR2 SDRAM with ECC
Serial I/O
2
Transition Modules
CR5-TM
Bus Interface Chip
PLX 6254
Ethernet
Gigabit Ethernet
Other
AXIS Support
System/ Peripheral
Both
Ruggedization
Level 1-5 Air, Conduction Cooled

Accessories

CR5-TM200001 - 3U CompactPCI rear-panel I/O board that mates with the CR5 3U CPCI single board computer. It provides a set of connectors to terminate external cables for the various rear access interfaces on the CR5. For use with CR5xx2xxx.

CR4-TM - 3U CompactPCI rear-panel I/O board that mates with the CR5 3U CPCI single board computer. It provides a set of connectors to terminate external cables for the various rear access interfaces on the CR5. For use with CR5xx1xxx.
