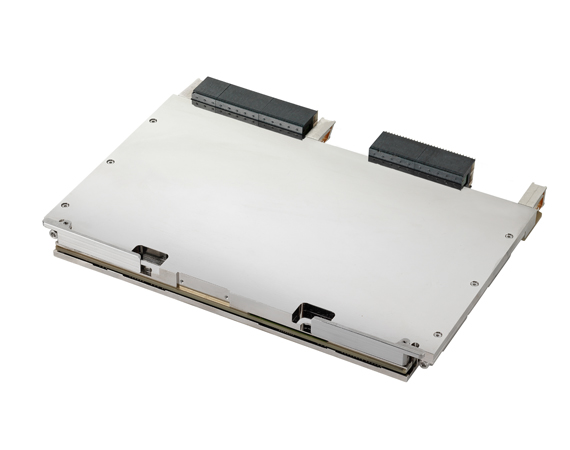

SBC6511

Rugged SOSA aligned 6U VPX SBC with 9th Gen Intel Xeon E CPU
SBC6511

Overview

Processing with the best technology

Delivering maximum processing performance from a rugged, single 6U OpenVPX slot, the innovative SBC6511 combines the latest Intel® Xeon® E 9th Generation six core CPU (formerly known as Coffee Lake Refresh) with the Xilinx® Zynq® UltraScale+™ FPGA with advanced security capabilities to yield maximum processing performance and security.

What you need

The SBC6511 outshines with 64GB DDR4 with ECC and up to 256 GB NVMe SSD.  It delivers a multi-fabric architecture on the data, control, and expansion planes. The SBC6511 provides support for DisplayPort™ 1.2 outputs providing alignment with the latest VITA 65 OpenVPX standard. It also provides a dual 40 GbE data plane with RDMA, plus dual 10GbE ports on the control plane. Expansion is supported by the PCIe Gen 3 capable expansion plane and multiple PCIe Gen 3 capable XMC sites.

Powerful hardware made stronger by game-changing software

Knowing your weak points is the foundation of strength, because you can’t correct what you don’t measure. The SBC6511 can also be supported with one or more elements of the Abaco software suite, including PBIT for early monitoring and reporting; CIBIT for non-intrusive ongoing and on-demand monitoring and reporting; AXIS Software Tool Suite for increased application performance; and Health Toolkit, which acts as a system monitor to collect and report the health of all elements in the system, thanks to the VITA46.11 tier 1 and tier 2 interface over IPMI. All are fully compatible with the most widely-used operating systems and applications for industrial and defense deployments. The SBC6511 supports Linux, Windows and VxWorks operating systems plus Abaco’s AXIS software suite.

SOSA aligned by design

The SBC6511 is aligned with The Open Group Sensor Open Systems Architecture™, or SOSA™, technical standard. As well as providing alignment with the SOSA standard, a full-feature variant of the SBC6511 is available to provide a robust insertion/upgrade solution for users of the SBC627, delivering substantially superior performance with minimal disruption.  In addition to all features of the SOSA aligned variant, the full-feature SBC6511 provides one additional XMC site, one additional DisplayPort™, and four additional USB 3.1 ports through inclusion of rear P3 and P6 connections.

Advanced security capabilities

The SBC6511 also features the innovative Xilinx® Zynq® UltraScale+™ FPGA with advanced security capabilities such as encryption, physically un-clonable functions (PUF) and Zeroization to help keep customer applications and missions secure. The FPGA is the root of trust in the SBC6511, giving users advanced security compared to “bolt-on” solutions found in other designs.

















Radar Solutions

Leading edge technologies coupled with extensive experience bring the products and expertise you need for advanced radar solutions.

More Details

Specifications

# Expansion Slots:
2x XMC with I/O
Control Plane
Dual 10Gigabit Ethernet
Data Plane
40/10GigE
Ethernet
10/100BaseT, 1000BaseT, 40 GigE
Expansion Plane
PCIe Gen 3
Fabric Interface
PCIe
Form Factor
VPX 6U, VPX REDI
FPGA Family
Zynq Ultrascale+
I/O
DisplayPort, GPIO, RS232/422, SATA, USB, 40Gb Ethernet, 10 Gigabit Ethernet
Maximum Memory
64 MB SDRAM with ECC
Maximum Storage
256 GB NVMe SSD
Mezzanine
2x XMC
Operating System (OS) Support
Linux, VxWorks, Windows
Processor
Intel Xeon E-2276ME
Ruggedization
Air cooled rugged, Conduction Cooled
Software
BIT, AXIS ImageFlex

Sonar Solutions

Abaco’s leading edge sonar platforms are deployed on countless vessels around the world, including the US Navy’s Virginia Class submarine.

More Details

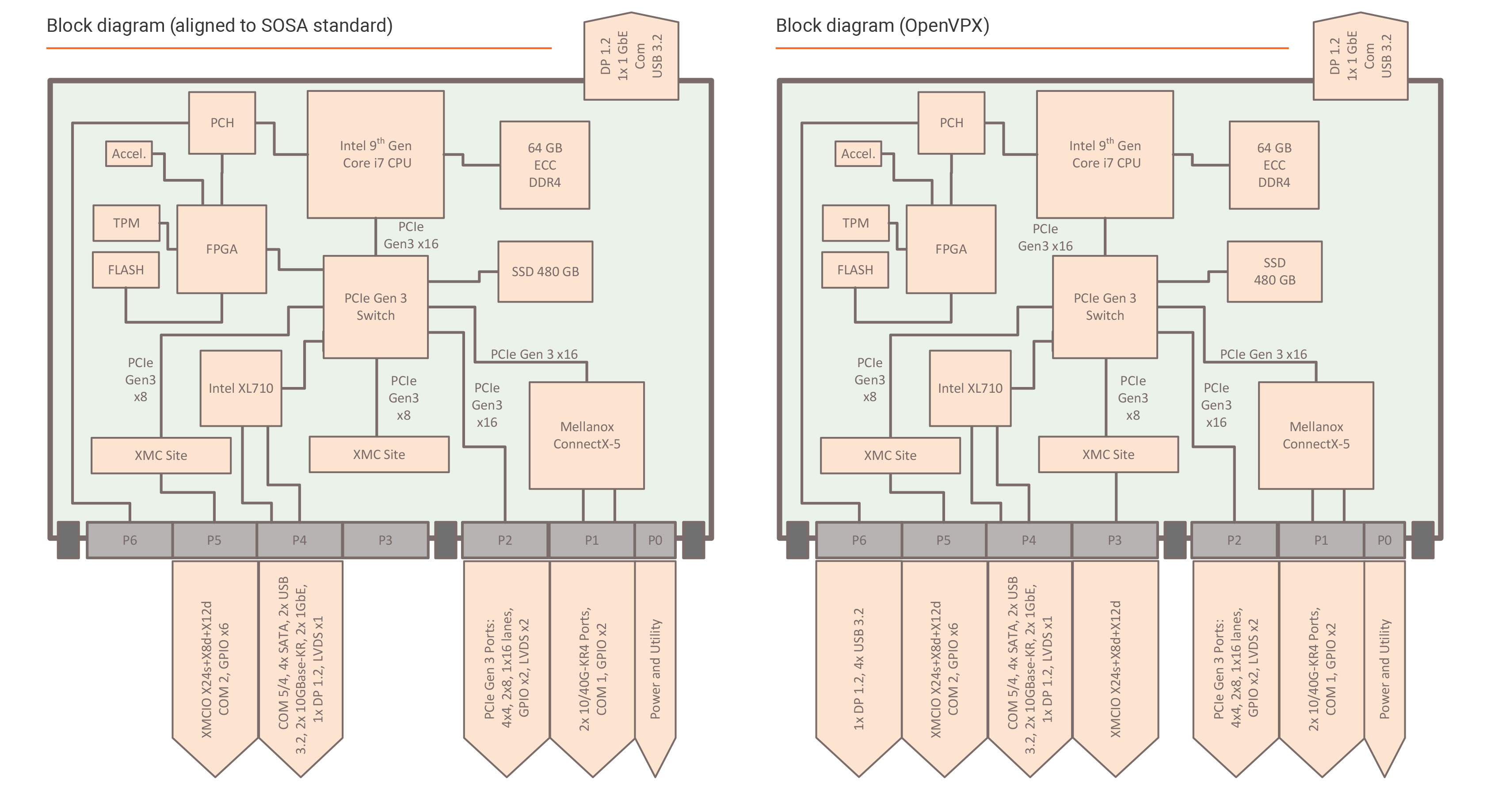

Block Diagram
