V7865

The V7865 VME SBC features the Intel Core 2 Duo @ 2.16 GHz or Intel Core Duo @ 2.0 GHz processors and I/O flexibility to meet many different application needs

This product reached the end of its lifecycle (end-of-life) on September 30, 2014

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

We recommend the following alternative solutions:

XVB602 VME SBC

Meet the computing needs of demanding industrial applications with a 6U VME Intel-based embedded computer

Learn More

XVR15 VME SBC

Meet the computing needs of demanding industrial and mil/aero applications with a 6U VME Intel-based embedded computer

Learn More

Overview

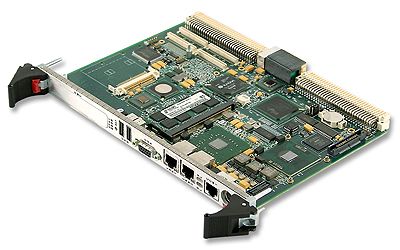

The V7865 VME SBC features the Intel Core 2 Duo @ 2.16 GHz or Intel Core Duo @ 2.0 GHz processors and I/O flexibility to meet many different application needs. The V7865 is available in commercial up to rugged extended temperature models, making it ideal for rugged computing applications including advanced defense, aerospace, and homeland security.

6U VME SBC
VME320
Optional VITA 41.3
Up to 3 GB DDR2 SDRAM
Intel Core 2 Duo @ 2.16 GHz, Intel Core Duo @ 2.0 GHz

Specifications

Form Factor

VME 6U

Processor

Intel Core Duo @ 2.0 GHz

# Expansion Slots

Maximum Memory

Up to 3 GB DDR2 SDRAM

Serial I/O

Transition Modules

ACC-0603RC

Bus Interface Chip

Tundra Tsi148

Ethernet

Gigabit Ethernet

Other

Optional VITA 41.3; Extended Op. Temp; AXIS Support

Ruggedization

Commercial (benign)

Accessories

ACC-0602RC-000 - Rear Transition Module (RTM) designed to transition the V7865 I/O signals from the VME P2 connector to standard I/O connectors.

ACC-0603RC-000 - Rear Transition Module (RTM) with PMC I/O designed to transition the V7865 I/O signals from the VME P2 connector to standard I/O connectors.

PMC237CM1/V - VME SBC Carrier Card to expand a single PMC site on a VMEbus processor board to two PMC sites and one PCMCIA/CardBus socket or to three PMC sites.

Downloads

Manuals

Technical Datasheets

Datasheets

Software & Drivers

V7865-SDK-XP Manual R03.07
