Telum ASLP10

Telum ASLP10 - Processor AMC with Intel® Pentium®M Processor - Intel® E7520

Telum ASLP10

This product reached the end of its lifecycle (end-of-life) on September 1, 2010

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.

We recommend the following alternative solutions:

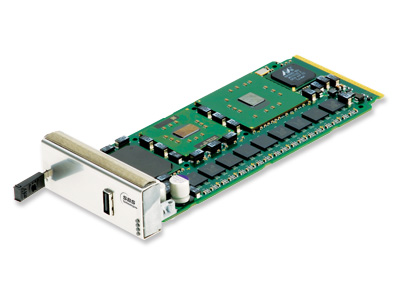

Telum ASLP10 is a single width full height processor AMC board. It is designed in compliance to AMC.0, AMC.1 Type 8 (PCI Express x8), AMC.2 Type E2 (2x Gigabit Ethernet) and AMC.3 Type S2 (2x SATA ports). The module supports Intel Pentium M processor starting from 1GHz to 2GHz with up to 2GB soldered DDR2-400 memory. Using soldered memory avoids the connector for the SODIMM or memory piggy which results in higher MTBF and better cooling.

  • Soldered memory for high reliability and optimized cooling
  • Up to 2GB DDR2-400 memory
  • Intel® Pentium®M Processor up to 2GHz
  • Compliant to AMC.0, AMC.1 (PCI Express), AMC.2 (Gigabit Ethernet) and AMC.3 (SATA)


Intel Pentium M @ 2.0 GHz
Maximum Memory
Up to 2 GB DDR2 SDRAM with ECC
Chip Set
Intel® E7520
