Telum ASLP11

High Performance Processor AMC Module

Telum ASLP11

This product reached the end of its lifecycle (end-of-life) on January 1, 2011

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.

Overview

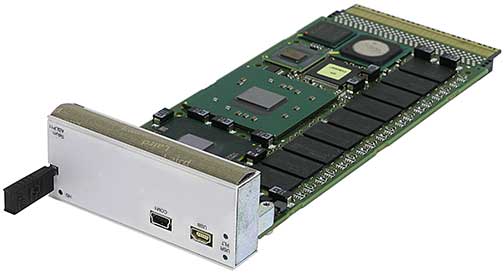

The Telum™ ASLP11 is a single width, full or mid size AMC processor board with an integrated Intel® Core™ 2 Duo processor plus 3100 integrated controller. The assembly is fully compliant to the PICMG AMC.0, R2.0, AMC.1, R2.0 (Type 8 PCI Express), AMC.2 (Type E2 Gigabit Ethernet) and AMC.3 (Serial ATA) specifications. The Telum™ ASLP11 hosts one Core 2 Duo processor with a 1.5 GHz or higher core clock. The assembly is ready to accept higher performance Core 2 Duo processor variants when introduced by Intel.





  • MMC provides IPMI ver.2.0 functionality
  • Optional -40° C to +55° C operating temperature
  • 2 GByte Flash ROM array, higher capacity array available
  • Up to 4 GByte DDR2 SDRAM with ECC
  • Linux





RoHS Compliant

RoHS Compliant

Specifications

Processor
Intel Core 2 Duo @ 1.5 GHz
Maximum Memory
4 GB DDR2 SDRAM with ECC
Chip Set
Intel® 3100
