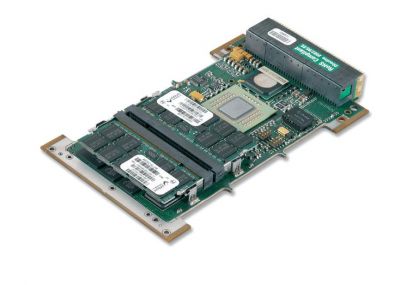

SBC330

3U VPX Power Architecture 8641D

SBC330

This product reached the end of its lifecycle (end-of-life) on April 30, 2014

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.

We recommend the following alternative solutions:

Overview


Designed to maximize the benefits of its dual core 8641D Power Architecture processor, the VPXtreme3 SBC330 single board computer delivers high performance computing. The SBC330 benefits from the improved signal integrity and power management offered by the VPX form factor. The 8641D can support symmetric or asymmetric multiprocessing, and its dual 64-bit DDR2 memory controllers can be assigned to each core for increased operating system isolation, or can be shared between the cores. The SBC330 is supported by Deployed Test software and a range of BSP packages for standard COTS operating systems.



  • 3U VPX Single Board Computer
  • Up to 4 GB DDR2 SDRAM
  • High Performance Freescale 8641D @ 1.5 GHz VPX SBC
  • 2x PCI Express
  • 2x Gigabit Ethernet
  • For Ruggedization Levels, please see the configuration guide under the downloads tab





OpenVPX Logo

OpenVPX Logo

Specifications

Form Factor
VPX 3U
Processor
8641D @ 1.5 GHz
# Expansion Slots
0
Maximum Memory
Up to 4 GB DDR2 SDRAM
AXIS Support
No
Expansion Plane
PCIe
Control Plane
1000BASE-T
Data Plane
PCIe
Ruggedization
Level 1-5 Air, Conduction Cooled

Accessories

VPX3UX300-113 - 3U VPX Rear Transition Module (RTM) provides standard connectors, headers and interfaces the SBC310 and associated PMC/XMCs.

VPX3UX600-113 - 6U high, 3U VPX Rear Transition Module (RTM) provides standard connectors, headers and interfaces the SBC310 and associated PMC/XMCs.
