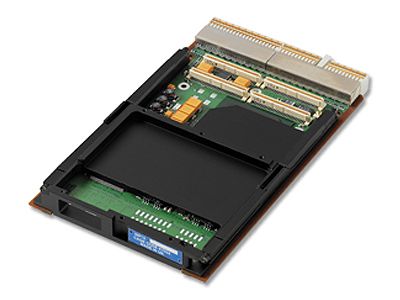

PowerPact3 IMP1A

3U CompactPCI PowerPC 7410

PowerPact3 IMP1A

This product reached the end of its lifecycle (end-of-life) on February 29, 2012

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.

We recommend the following alternative solutions:

Overview


Designed for demanding, high performance computing applications with restrictive dimensional requirements, IMP1A packs a powerful CompactPCI SBC into an extremely space efficient 3U form factor. We are combining 40 years of experience in the defense electronics market coupled with continued investment in PowerPC technology to produce a highly effective solution for the most rigorous of requirements. Available with either Power PC 755 or 7410 processors IMP1A is based around a Marvell Discovery Integrated System Controller which combines high-performance system control with multiple communication peripherals including high-speed serial and Ethernet ports, all on a single chip.



  • PMC site
  • 10/100 Ethernet
  • Freescale 755 or 7410 up to 500 MHz
  • Five ruggedization levels, air- and conduction-cooled
  • For Ruggedization Levels, please see the configuration guide under the downloads tab

Specifications

Form Factor
cPCI 3U
Processor
7410 @ 500 MHz
# Expansion Slots
1
Maximum Memory
Up to 128 MB SDRAM
Serial I/O
2
Transition Modules
CPCI3UX600
Bus Interface Chip
Marvell Discovery
Ethernet
10/100BaseT
System/ Peripheral
Both
Ruggedization
Level 1-5 Air, Conduction Cooled

Accessories

CPCI3UX600-11 - Module is a customized interface adapter, compatible with 3U CompactPCI backplanes. It fits directly onto the rear P2 position of the backplane and is suitable for interconnection with the PowerPact IMP1A host card.
