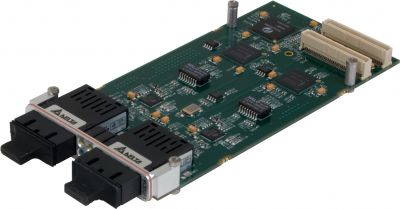

PMC613FXRC Network Interface Card

PMC Ethernet Network Interface Card (NIC) with dual 100BaseFX ports
PMC613FXRCSC

This product reached the end of its lifecycle (end-of-life) on May 14, 2021

Replace with XMC477RC using 100BASE-FX SFP modules

We recommend the following alternative solutions:

Overview

PMC613FXRC is an Ethernet Network Interface Card (NIC) available with one or two 100BaseFX fiber ports and SC connectors. ST connectors are optional. This PMC form factor NIC is RoHS compliant. Each 100BaseFX port is capable of full duplex operation in 100 Mbit mode. Each Ethernet/PCI interface includes a powerful DMA engine with very deep FIFO buffers. This assures continuous, full bandwidth operation with minimal PCI overhead. The PMC613FXRC is supported by native drivers for many common operating systems such as Windows and Linux. Software drivers are available from Abaco Systems for additional operating systems including VxWorks, LynxOS and Solaris. These drivers have been carefully designed and implemented to fit within the LAN protocol stack of the host operating system.





  • Options: single port, ST connectors
  • Front I/O
  • Dual 100BaseFX port
  • SC connectors
  • PCI 66/33MHz capable
  • RoHS compliant
  • Ethernet/LAN Resource Center





Specifications

Form Factor
PMC
Front Panel I/O Connectors
SC, ST
Media
Fiber
PCI Controller/ Ethernet MAC
Intel 82551
Port Type
100BaseFX
Ports
2

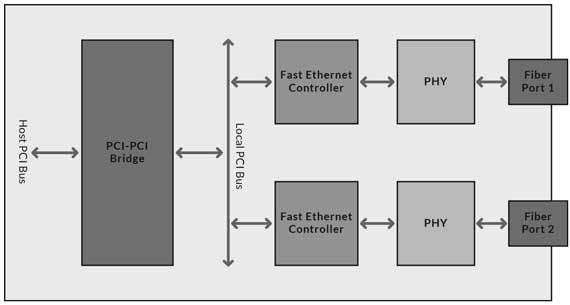

Block Diagram
