PMC-GBIT-DT2CC Network Interface Card

Conduction cooled dual Gigabit Ethernet PMC


This product entered a Restricted Production Phase (RPP) on May 31, 2019

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

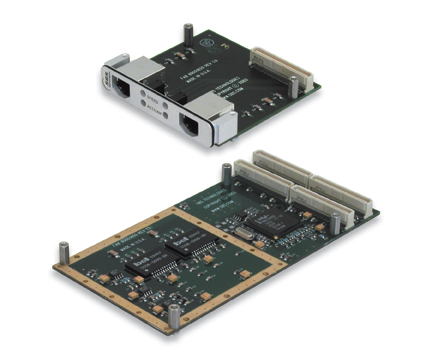

A conduction cooled, conformal coated PCI Mezzanine Card (PMC) with dual 1000BaseT Gigabit Ethernet interface controller ports. This COTS Gigabit Ethernet interface card has rear I/O. The Ethernet network interface complies with the IEEE 802.3 specifications for 10BaseT, 100BaseTX, and 1000BaseT over category 5 twisted-pair cable. Full-duplex and half-duplex modes are supported for 10BaseT and 100BaseTX. 1000BaseT supports full-duplex mode only. The PMC-GBIT-DT2CC is compliant with standard single-wide PMC IEEE P1386.1, PCI 2.2, and PCI-X 1.0 specifications.

  • Drivers for Linux® and Windows NT/2000® available from
  • Driver for VxWorks®
  • Single-wide 32/64-bit 33/66 MHz PCI, 66/133 MHz PCI-X PMC
  • Conduction cooled and conformal coated
  • Interface card with rear I/O access
  • Dual 10BaseT/100BaseTX/1000BaseT
  • Extended operating temperature range of -40 to +85 C with temperature screening


Form Factor
Port Type
PCI Controller/ Ethernet MAC
Intel 82546
Rear Panel I/O Connectors
