Overview

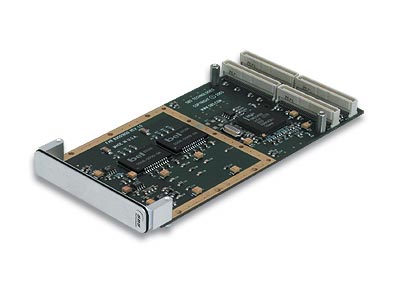

The Ethernet network interface complies with the IEEE 802.3 specifications for 10BaseT, 100BaseTX, and 1000BaseT over category 5 twisted-pair cable. Full-duplex and half duplex modes are supported. The PMC-GBIT-DT2BP is compliant with standard singlewide PMC IEEE P1386.1, PCI 2.2, and PCI-X 1.0 specifications.
- Auto-negotiating protocol selection
- Linux® and Windows NT/2000® drivers available from www.intel.com
- Driver for VxWorks®
- PCI-X PMC
- Single-wide 32/64-bit 33/66 MHz PCI, 66/133 MHz
- Interface card w/rear panel access
- Dual 10BaseT/100BaseTX/1000BaseT network
- Network Communications Resource Page
Specifications
Form Factor
PMC
Port Type
10/100/1000BaseT
Media
Copper
Ports
2
PCI Controller/ Ethernet MAC
Intel 82546
Rear Panel I/O Connectors
10/100/1000BaseT
