High-Speed Fiber-Optic Reflective Memory with Interrupts


This product reached the end of its lifecycle (end-of-life) on April 9, 2009

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.

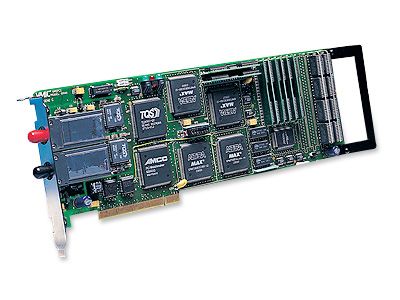

PCI-5588 Reflective Memory - interface allows data to be shared between up to 256 independent systems (nodes) at rates up to 29.5 Mbyte/s. Each Reflective Memory board may be configured with 256 Kbyte to 16 Mbyte of on-board SDRAM. The local SDRAM provides fast Read access times to stored data. Writes are stored in local SDRAM and broadcast over a high-speed fiber-optic data path to other Reflective Memory nodes. The transfer of data between nodes is software transparent, so no I/O overhead is required. Transmit and Receive FIFOs buffer data during peak data rates to optimize CPU and bus performance to maintain high data throughput.

  • Any node on the network can generate an interrupt in any other node on the network or in all network nodes with a single command
  • Data transferred at 29.5 Mbyte/s without redundant transfer
  • Data transferred at 14.8 Mbyte/s with redundant transfer
  • High-speed, easy-to-use fiber-optic network (1.2 Gbaud serially)
  • Data written to memory in one node is also written to memory in all nodes on the network
  • Up to 256 nodes
  • Connection with multimode fiber up to 1,000 ft; single-mode fiber up to 10 km or twinax cable up to 30 m


Form Factor
Memory Capacity
Up to 16 MB


CBL-000-F3-Axx Fiber Cable CBL-001-33-Axx Twinax Cable
