P-SER Interface

12-channel RS-485/422/232

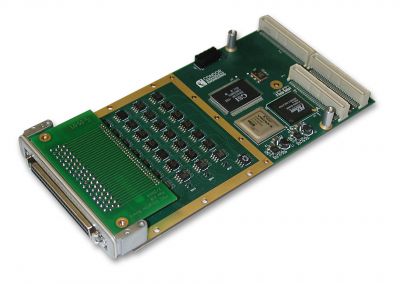

P-SER Serial Communications PMC Interface

Overview

P-SER I/O product is a native PMC form factor interface providing real-time serial input and output with high time-precision reception/input time-stamping, scheduled transmission/output, event triggering and interrupt support. This interface is designed to meet the needs of both the simulations/test and the real-time embedded applications whether in Windows or VxWorks environments. Optionally available on PCI, cPCI and PCI Express backplane carriers, the P-SER products are distributed with an API library and source code, and are compatible with both Windows and VxWorks operating systems.

The P-SER provides software to support the ARINC CSDB protocol that uses standard RS-422 at the physical layer.

  • Configurations available which have "balanced" differential transmit capability to support MIL-STD-188-114A balanced type I operation
  • IRIG-B input and generator
  • Conductively-cooled configurations available
  • PCI, cPCI and PCI Express carrier options
  • Operation up to 10 MHz
  • Flexible transmit command processor supporting message scheduling, delays and triggers
  • Advanced API with support for Windows 10 (64-bit), 7, Vista, XP, Linux, VxWorks and Integrity
  • Eight avionics-level discrete I/O lines
  • 12 independent RS-232/422/485 channels
  • CSDB can be configured on any channel
  • Large 2 Mbyte buffering shared between channels
  • High density serial communications PMC Interface
  • Carrier card options available: PCI (-X), 3U cPCI (-3) and PCI Express (-U)







Specifications

# ARINC Channels:
12 Independent RS232/422/485
# Discretes:
8
Application
Lab, Simulation, Test, Embedded
Channels
12
Form Factor
PMC, PMC on Carrier Cards (PCI Express, PCI, cPCI)
Front I/O
Yes
Protocol
CSDB
Rear I/O
Yes
Ruggedization
Conduction Cooled
Temp Range
Commercial XT
