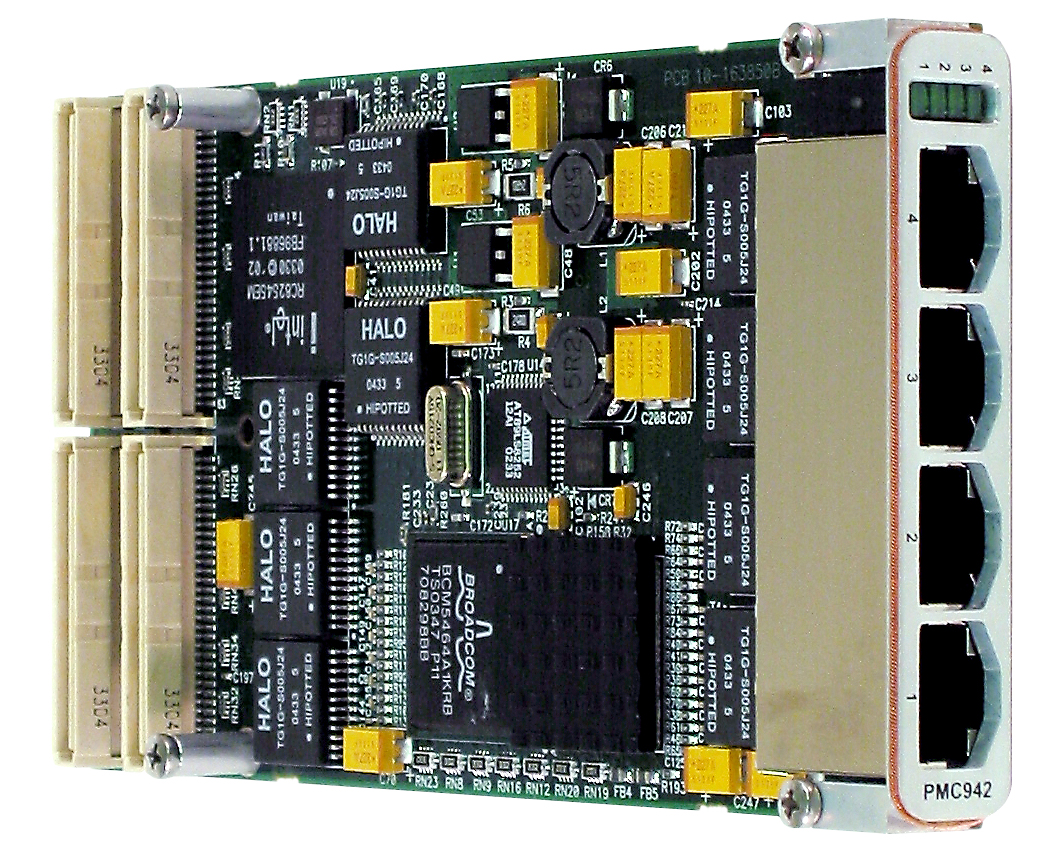

NETernity™ PMC942RC

Layer 2 Unmanaged GigE Switch & NIC in PMC RoHS

Overview


Maximum flexibility, maximum performance

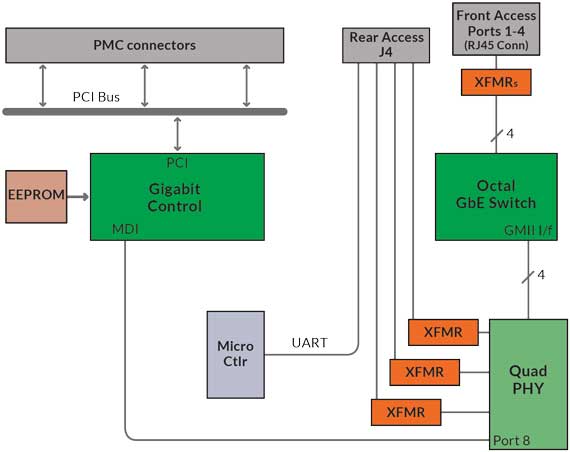

The NETernity™ PMC942RC is a fully integrated 8-port 10/100/1000BaseT Ethernet switch designed to support the low-cost requirements of unmanaged switch applications and converging networks. Seven of the ports are external; the eighth port appears as a NIC (Network Interface) to the host SBC to which the PMC is attached.

Why Abaco Systems NETernity Switches?

Abaco Systems has a wealth of expertise in military, commercial and telecommunications markets. This makes Abaco Systems unique in the embedded computing industry with an in-depth understanding of application requirements and knowledge of communication protocols. Abaco Systems’ switches provide maximum flexibility, performance, and density and are available in a variety of form factors, interfaces, levels of ruggedness, port configurations, media support and types of management.

Specifications

Form Factor
PMC
Description
Four ports accessible from front RJ45 connectors, three ports routed to P4. One port GigE controller appears as a Network Interface to the host.
Port Type
10/100/1000BaseT
Management Type
Unmanaged Layer-2
Ports
8
Front Panel I/O Connectors
RJ-45
