NETernity™ CP980RC

6U CompactPCI 24-port unmanaged layer 2 switch with 24 10/100/1000BaseT ports routed to rear I/O; supports high-availability hot swap; RoHS compliant

NETernity™ CP980RC 6U CompactPCI 24-port Unmanaged Layer 2 Gigabit Ethernet Switch

This product is no longer recommended for new designs.

Product configuration is currently frozen and no further design modifications are planned. We offer a comprehensive suite of Lifecycle Management services for existing customers. If you have any questions, please CONTACT US. To see all end of life products CLICK HERE.

We recommend the following alternative solutions:

Overview


High Performance, High Reliability

The CP980RC is designed specifically to fulfill the requirements of customers looking for high performance, high reliability switching solutions at low cost. The 6U CompactPCI form factor facilitates communications within a CompactPCI chassis as well as supporting the network outside the chassis. It is RoHS compliant, and supports high availability hot swap.

Configuration and Monitoring Capabilities

Layer 2 unmanaged switches are switches with configuration and monitoring capabilities, but with the management limited to layer 2. These are also accessed locally or remotely. Unmanaged switches are Layer-2 switches with no operator interface and are designed for quick deployment in simpler applications.

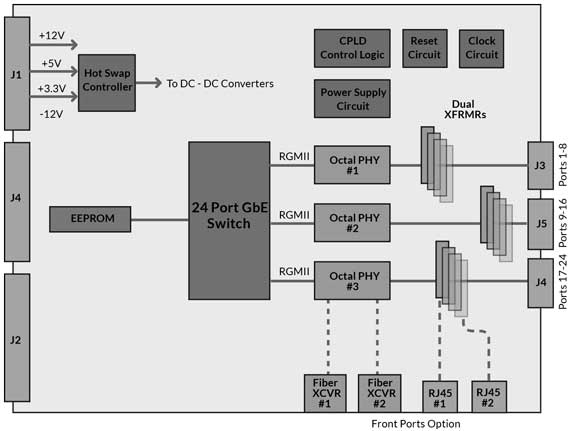

Block Diagram

Specifications

Form Factor
cPCI 6U
Port Type
10/100/1000BaseT
Management Type
Unmanaged Layer-2
Ports
24

Accessories

TRCP9XX-5RC 5-port rear transition module TRCP9XXRC 24-port rear transition module TRCP9XXRC-12 12-port rear transition module
