NETernity™ RM943/.10

NETernity 6U VME Layer 2 unmanaged 10/100/1000BaseT Gigabit Ethernet switch

NETernity™ RM943/.10

This product reached the end of its lifecycle (end-of-life) on January 30, 2010

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

We recommend the following alternative solutions:

Overview

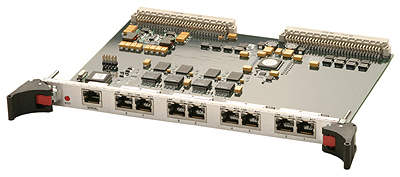

NETernity™ RM943/.10 is a 6U VME fully integrated 8-port 10/100/1000 Gigabit Ethernet switch designed to support the low cost requirements of unmanaged switch applications and converging networks. The Quality of Service (QoS) technology allows low cost unmanaged switches to carry voice and data traffic without having to compromise the quality of its voice traffic by using the packet prioritization scheme. Packets are prioritized based upon their Layer 2 Virtual LAN (VLAN) priority tag. A serial interface is provided, if the user requires a change from the default configuration of the switch.



  • 802.1Q VLAN
  • 802.1p QoS
  • Auto address aging
  • Auto address learning
  • 4K MAC address table
  • Full wire speed Layer 2 switching on all ports
  • Option for four of these ports to be 1000BaseSX
  • Eight 10/100/1000BaseTX auto-negotiating, supports full or half duplex
  • Broadcom BCM5388 switch fabric
  • Option: 6 ports 10/100/1000BaseT + 2 port 1000BaseSX
  • Not recommended for new designs -- see NETernity RM981RC for new designs

Specifications

Form Factor
VME 6U
Port Type
10/100/1000BaseT
Management Type
Unmanaged Layer-2
Ports
8
