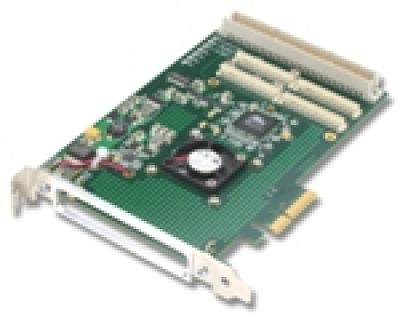

ICS-7004

ICS-7004 is a short form PCI Express carrier for PCI Mezzanine cards (PMC) or Processor PCI Mezzanine Cards (PrPMC).
ICS-7004

This product entered a Restricted Production Phase (RPP) on June 21, 2011

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

The ICS-7004 is a short form factor PCI Express carrier for PCI Mezzanine Cards (PMC) or Processor PCI Mezzanine Cards (PrPMC), compatible with four, eight and 16-lane interface connectors found in desktop and server PCs and workstations. The 4-lane PCIe interface allows data transfer rates to be achieved that approach the maximum rates obtainable with a PMC module, in contrast to conventional PCI carriers that may limit the transfer rate or impose additional latencies.

Suggested Replacement is SPR418A - PCI Express PMC/XMC Carrier Card



  • Adapts one PMC card to x4 PCI Express
  • Supports PMC or PrPMC
  • PMC site supports PCI-X 133 MHz, allowing data rates up to 1 GBytes/s
  • 96-pin DIN connector mapping to PMC P4 per VITA-35
  • IEEE 1386 compliant
  • VITA-39 compliant
  • RoHS compliant
  • Sensor Processing Resource Center


Specifications

Capacity
1 PMC
Form Factor
PCI
