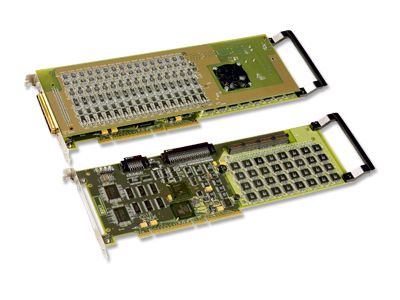

ICS-645D

High-Speed Acoustic ADC Card with Signal Conditioning and High Bandwidth I/O. Designed for applications in high-frequency sonar and high-speed test and measurement (littoral and mine hunting applications, vibration analysis, and jet engine testing).

ICS-645D

This product reached the end of its lifecycle (end-of-life) on December 1, 2011

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.

We recommend the following alternative solutions:

Overview


Derived from the popular ICS-645C product, and designed for applications in high-frequency sonar and high-speed test and measurement (littoral and mine hunting applications, vibration analysis, and jet engine testing). It includes a daughter card that provides signal conditioning for each analog input channel, consisting of programmable gain control (four ranges) and a fixed frequency anti-alias filter. The filters on the standard version of the product have cut-off frequencies of 1.25 MHz; as an option, the frequencies can be changed.

The ICS-645D can be configured for up to 32 channels of output at sampling frequencies of up to 5 MHz/channel. The signal bandwidth is limited 1.25 MHz. The PCI Bus is compatible with PCI 2.2 (64-bit, 66 MHz) and supports universal signaling (5V/3.3V). The PCI Bus master interface on the board provides chained (scatter-gather) and non-chain mode burst transfers. The ICS-645D provides 16 MBytes of onboard storage. As an alternative to the PCI bus, data may be routed through an FPDP II output port at up to 400 MBytes/s. When working with FPDP devices that do not support FPDP II, the interface will revert to ANSI/VITA 17 FPDP operation at up to 160 MBytes/s.



  • 32 ADC channels (Analog Devices AD9260): 16-bits @ 4MSample/sec
  • Signal bandwidth < 1.25 MHz
  • 64-bit, 66 MHz PCI interface (PCI 2.2 compliant), 400 MBytes/sec FPDP II interface
  • Differential inputs with onboard signal conditioning
  • Simultaneous sampling across all channels, even in multi-card systems
  • Up to 16 MBytes of onboard memory
  • Windows, Linux device drivers
  • Extensive application and technical support available
  • Sensor Processing Resource Center

Specifications

Form Factor
PCI
Function
Analog Input
Channels
32
Max. Sampling/Conversion Frequency
2.5 MHz/ch.
Memory
16 MB
Resolution
16-bit

Accessories

  • DRV-645D-WIN and DRV-645D-LX - Windows and Linux software device drivers
  • LIB-645D-ML - MatLab Application Library
  • CN-FPDP - FPDP Connector
  • CN-645D-P6 - Analog Input Connector
  • CN-645D-P4 - Local Bus Connector
  • CBL-1196 - Analog Input Cable
  • CBL-1065 - P4 Local Bus Ribbon Cable
