FUSION60 Image Fusion Processor

Fusion60 6U VMEbus Image Fusion Processor

FUSION60 Image Fusion Processor

This product reached the end of its lifecycle (end-of-life) on March 28, 2011

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.

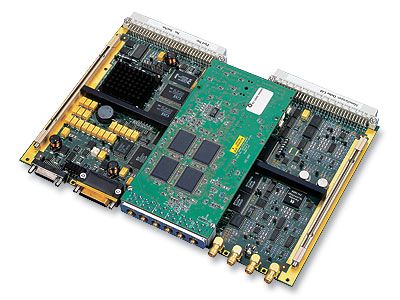

The 6U VME FUSION60 uses an advanced image fusion technique developed by Waterfall Solutions and Abaco Systems to combine two input video streams into a single, enhanced video output. This powerful fusion technique can be supported by flexible image pre-processors which can provide noise reduction and contrast enhancement for a range of sensor types including image intensifiers and thermal imagers.

The image alignment module compensates for misalignment of the sensors using a full projective warp and can also deal with common radial lens distortions. The intelligent fusion scheme analyzes incoming video in order to maximize scene detail and contrast in the fused output. This algorithm has been designed especially for a low latency, real-time implementation which is flexible enough to fuse images from a wide range of sensors.

• Multiple algorithm capability including multiple target detection and multiple object track
• Statistical target enhancement pre-processors for high clutter rejection
• Intelligent “Breaklock” and re-acquisition algorithms
• Platform drive filters
• Onboard serial links
• On board PMC interface
• Composite video input / output
• High speed digital video input
• Symbology overlay
• 6U VME card
• PC control software


Form Factor
Control Interface
VME DC analog
Video Input
16-bit parallel, NTSC/RS170 and PAL/CCIR (50/60Hz)
Video Output
