FMC424 FPGA Mezzanine Card

High speed optical communication

Overview

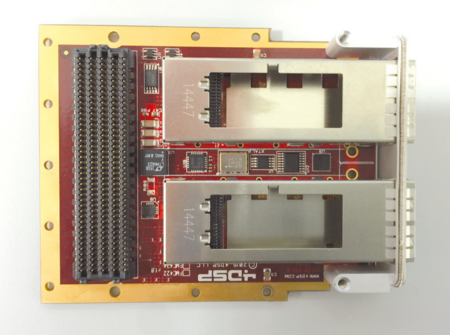

The FMC424 is a dual QSFP+ FPGA mezzanine card.

Electrically compliant with the VITA 57.1 standard, the FMC424 is compatible with Abaco Systems' FPGA carrier cards offering high pin count connectors. It also allows for the option to stack an additional FMC over it.

Any of the Abaco Systems FMCs that use LVDS and single-ended signaling only can be mounted over the FMC424, thus offering users  the ability to build a complete high speed data acquisition, waveform generation and optical communication solution while using a single FMC site on an FPGA carrier card.

The FMC424 is an ideal solution to bring high speed optical connectivity to an FPGA-based system and ensure reliable external communication.

Board Support Package

Our Board Support Package helps customers get their hardware implementation underway as quickly as possible by providing reference designs, the Stellar IP FPGA development tool, and the 4FM GUI user interface for controlling and monitoring the hardware, as well as other supporting elements.



Specifications

Channels
2
Cooling
Air
Data Rate
40 Gbps
FMC Connector
HPC
Form Factor
FMC
Front Panel I/O Connectors
2 QSFP
Function
Digital Communications, QSFP+
Signaling
GBT
