This product reached the end of its lifecycle (end-of-life) on September 1, 2010

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

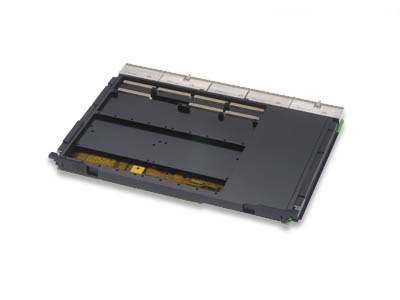

Based on the Intel Pentium® M Processor, the CR9 platform is designed to support processor speeds starting with 1 GHz up to 1.8 GHz. It offers low power consumption and eliminates the need for on-board ventilation. Rugged needs are addressed with optional conduction cooling (VITA 30.1-2001 and ANSI/VITA 20-2001) and extended temperature range of up to -40° to +85° C. Increased shock and vibration immunity is designed in by using stiffener bars and wedge locks. Conformal coating is optional.





  • RoHS compliant with version 3.x
  • Extensive Software Support
  • Hot Swap (Full) PICMG 2.1 compliant
  • Optimized for harsh environments
  • Intel Pentium® M Processor,1 GHz to 1.8 GHz





Specifications

Form Factor
cPCI 6U
Processor
Low power CPUs
# Expansion Slots
3
Maximum Memory
Up to 2 GB DDR SDRAM with ECC
Serial I/O
2
Transition Modules
CTM12
Bus Interface Chip
PLX 6254
Ethernet
Gigabit Ethernet
System/ Peripheral
Both
Ruggedization
Level 1-5 Air, Conduction Cooled
