This product entered a Restricted Production Phase (RPP) on February 29, 2012

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

We recommend the following alternative solutions:

Overview

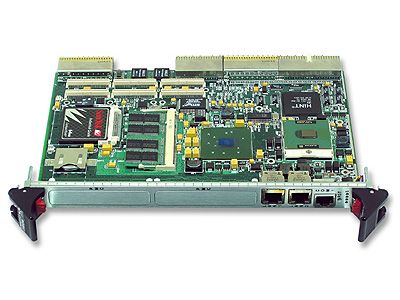

Available with either Intel Pentium M or Celeron M processor technology up to 1.8 GHz, the CPCI-7806 CompactPCI SBC features a 400 MHz system bus and incorporates Intel's 855GME graphics memory controller with up to 1 GB Dual Data Rate (DDR) SDRAM. The CPCI-7806 provides high performance computing for I/O intensive applications with the Intel 6300ESB I/O controller hub to provide dual PMC sites (64-bit/66 MHz PCI-X and 32-bit/33 MHz PCI), parallel and serial ATA, CompactFlash option, dual integrated serial ports, and dual USB ports.



  • Hot Swap(Full) PICMG2.1 Compliant
  • Dual gigabit Ethernet
  • Intel Pentium M Processor up to 1.8 GHz
  • 2x PMC expansion sites


Specifications

# Expansion Slots:
2
Bus Interface Chip
Hint HB6
Ethernet
Gigabit Ethernet
Form Factor
cPCI 6U
Maximum Memory
Up to 1 GB DDR SDRAM
Processor
Low power CPUs
Ruggedization
Commercial (benign)
Serial I/O
2
System/ Peripheral
Both
Transition Modules
VMIACC-0584
