This product reached the end of its lifecycle (end-of-life) on September 1, 2010

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.

We recommend the following alternative solutions:

Overview

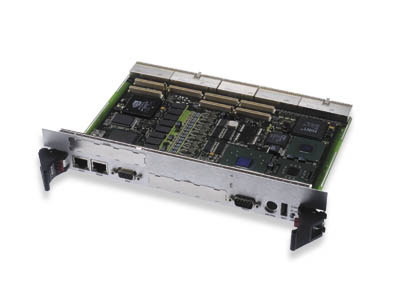

The CP9 platform is designed to support processors starting with 1 GHz up to 1.8 GHz. It offers low power consumption and eliminates the need for on-board fans. The design is ready to accept future higher performance Intel Pentium M Processor versions. The CP9 provides a unique feature set, including up to 2 GB of DDR SDRAM (200) with ECC, three independent on-board PCI buses, high speed support for the CPCI backplane,two PMC interfaces (64-bit/66 MHz and 32-bit/33 MHz). A high level of functional integration (VGA/TFT, USB, serial interfaces, etc.) within a single board and wide front panel gives users the freedom to use the PMC interfaces as extension for their applications. The board is also available in extended temperature version ranging from -40° to +85° C.



  • Hot Swap (Full)
  • PICMG 2.16 compliant
  • 1 GHz to 1.8 GHz
  • RoHS compliant with version 3.x
  • Optimized for front I/O
  • Intel Pentium M Processor

Specifications

Form Factor
cPCI 6U
Processor
Low power CPUs
# Expansion Slots
3
Maximum Memory
Up to 2 GB DDR SDRAM with ECC
Serial I/O
2
Transition Modules
CTM12
Bus Interface Chip
PLX 6254
Ethernet
Gigabit Ethernet
System/ Peripheral
Both
Ruggedization
Commercial (benign)
