CK5

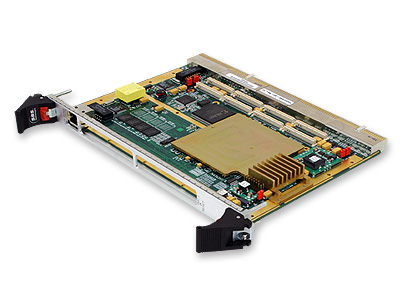

Rugged 6U CPCI Single Board Computer

CK5

This product reached the end of its lifecycle (end-of-life) on September 30, 2010

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

We recommend the following alternative solutions:

Overview


Rugged 6U CPCI Single Board Computer with G4 PowerPC processor includes 10/100 Mb/s Ethernet and two PMC expansion sites. The CK5 hosts the MPC7447A G4 PowerPC processor with processing speeds up to 1 GHz and the Marvell Discovery III Bridge chip. The CK5 includes two PMC sites.



  • Two PMC expansion sites
  • 10/100 Mb/s Ethernet
  • Conduction or convection-cooled versions
  • MPC7447A G4 PowerPC processor with processor speeds up to 1 GHz

Specifications

Form Factor
cPCI 6U
Processor
7447A G4 up to 1 GHz
# Expansion Slots
2
Maximum Memory
Up to 1 GB SDRAM with ECC
Serial I/O
6
Transition Modules
CK5-TM
Bus Interface Chip
PLX 6254
Ethernet
10/100BaseT
System/ Peripheral
Both
Ruggedization
Level 1 Std. Air Cooled
