C2K

High Performance PICMG 2.16 6U CPCI Embedded Computer

C2K

This product reached the end of its lifecycle (end-of-life) on March 17, 2011

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.

Overview

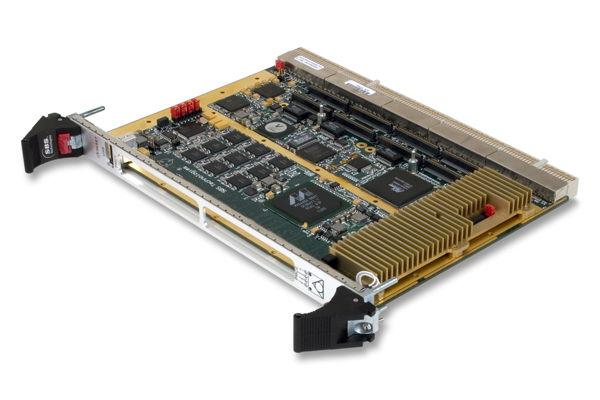

Rugged PICMG 2.16 compliant 6U CompactPCI Single Board Computer features increased processor speeds, bus speeds and memory capacities making it an excellent choice for advanced defense, aerospace and homeland security applications.



  • 16x programmable GPIO ports
  • 2X 1.5Gb/s SATA 1.0 ports
  • 8x Serial Ports
  • MPC7447A PowerPC G4 processor from Freescale
  • UP to 1GB SDRAM with ECC
  • 3x Gigabit Ethernet ports

Specifications

Form Factor
cPCI 6U
Processor
7447A G4 up to 1 GHz
# Expansion Slots
2
Maximum Memory
Up to 1 GB DDR SDRAM
Serial I/O
8
Transition Modules
C2K-TM
Bus Interface Chip
Marvell MV64460
Ethernet
Gigabit Ethernet
System/ Peripheral
Both
Ruggedization
Level 1-5 Air, Conduction Cooled
