C2KA CompactPCI SBC

6U Power Architecture single board computer

C2KA CompactPCI SBC

This product reached the end of its lifecycle (end-of-life) on August 31, 2015

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.

Overview


Reliable form factor

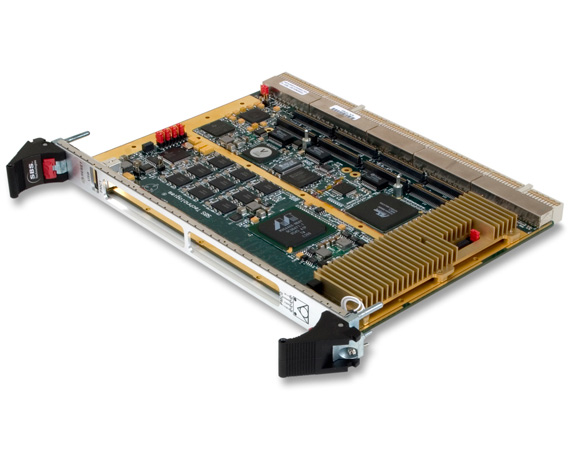

Continuing the long and reliable service expected from the CompactPCI form factor, Abaco Systems’ C2KA rugged PICMG 2.16-compliant 6U CompactPCI single board computer features increased processor speeds, bus speeds and memory capacities making it an excellent choice for advanced defense, aerospace and homeland security applications.

Reliable architecture

The C2KA hosts the MPC7448 or MPC7447A Power Architecture G4 processor from Freescale Semiconductor with core processor speeds up to 1.4 GHz and 1 MB of on-board L2 cache. The processor is supported with a 167 MHz MPX System Bus. It offers 1 GB DDR333 SDRAM with ECC, 256 MB of soldered boot flash with multi-level write-protection, 16x programmable GPIO ports, two 1.5 Gb/s SATA 1.0 ports, eight serial ports, and three Gigabit Ethernet ports.

Specifications

Form Factor
cPCI 6U
Processor
7448 @ 1.4 GHz
# Expansion Slots
2
Maximum Memory
1 GB DDR333 SDRAM with ECC
Serial I/O
8
Transition Modules
C2K-TM
Bus Interface Chip
Marvell MV64460
Ethernet
Gigabit Ethernet
Other
PICMG 2.16, AXIS Support
System/ Peripheral
Both
Ruggedization
Level 1-5 Air, Conduction Cooled
