AVC-cPCI 3007 Advanced Vehicle Computer

3U CompactPCI rugged computing platform

AVC-cPCI 3007 Advanced Vehicle Computer

This product reached the end of its lifecycle (end-of-life) on February 1, 2015

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.

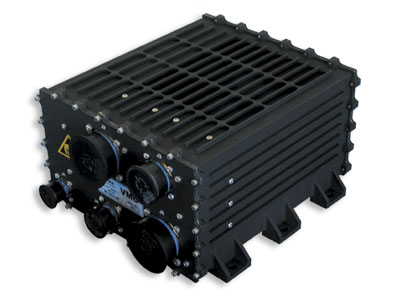

AVC-cPCI 3007 provides a rugged, yet highly flexible COTS computing platform suited for military aviation, civilian aviation, and other applications requiring rock-solid reliability such as UAVs, booster vehicles, and ground vehicles. Manufactured using Electrical Discharge Machining (EDM) and milling, the aluminum alloy (6061-T6) is strong, lightweight, and resistant to EMI. Instead of a wiring harness, the AVC reduces weight and increases reliability by using a lightweight printed circuit board (PCB) to route all internal I/O to the external front panel.

At 5.0" H x 8.73" W x 9.54" L, the 100 watt, 3U cPCI 6 slot configuration provides a Intel ULV Celeron processor, 9 dual redundant 1553 channels, 8 channels of high speed serial, and graphics processing capabilities. The AVC-cPCI 3007 weighs approximately 11 lbs and dissipates under 35 watts of power through conduction cooling.

  • Dissipates under 35 watts of power
  • Intel ULV Celeron processor
  • PCB-based wiring harness for improved reliability
  • Six 3U cPCI slots


Form Factor
Power Supply
16-40 VDC, 100W
