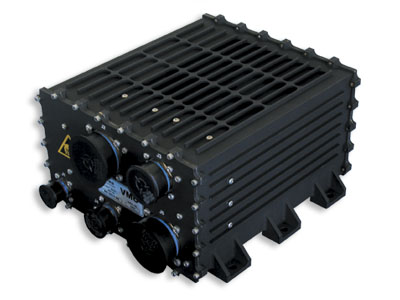

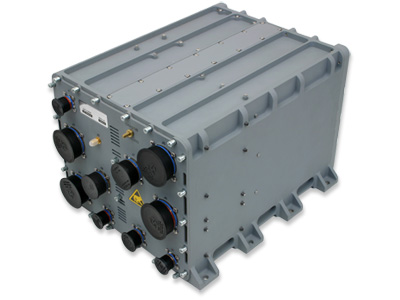

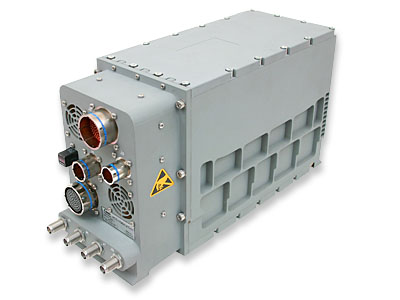

AVC-cPCI 3005 Advanced Vehicle Computer

3U CompactPCI rugged computing platform
AVC-cPCI 3005

This product entered a Restricted Production Phase (RPP) on January 1, 2015

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

AVC-cPCI 3005 provides a rugged, yet highly flexible COTS computing platform suited for military aviation, civilian aviation, and other applications requiring rock-solid reliability such as UAVs, booster vehicles, and ground vehicles. Manufactured using Electrical Discharge Machining (EDM) and milling, the aluminum alloy (6061-T6) is strong, lightweight, and resistant to EMI. Instead of a wiring harness, the AVC reduces weight and increases reliability by using a lightweight printed circuit board (PCB) to route all internal I/O to the external front panel.

At 5.0" H x 8.73" W x 9.54" L, the 100 watt, 3U cPCI 6 slot configuration provides a 2nd generation CM4 Power-PC processor, 12 channels of RS-232/422/485 high speed serial I/O, 2 dual redundant 1553 channels, 16 channels of ARINC 429, fibre channel, optional 1394 Firewire, and an option for a second CM4, and 12 additional high speed serial channels. The AVC-cPCI 3005 weighs under 11 lbs and dissipates under 25 watts of power through conduction cooling.

  • CM4 Single Board Computer with PowerPC Motorola 7410/750/755 400-500 Mhz processor
  • PCB-based wiring harness for improved reliability
  • 100 watt power supply
  • Six 3U cPCI slots

Specifications

Form Factor
cPCI 3U
Power Supply
16-40 VDC, 100W
Slots
6
