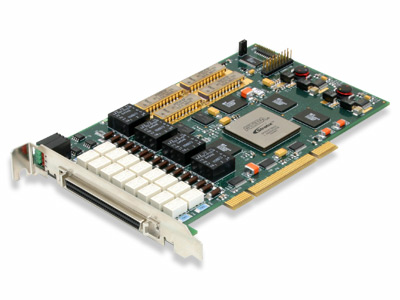

1553-PCI3

1 to 4 channel MIL-STD-1553 Interface

1553-PCI3

This product reached the end of its lifecycle (end-of-life) on January 15, 2010

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview


FOR LEGACY DESIGNS ONLY. See the QPCX-1553 for all new applications and designs. 1553-PCI3 interface provides the PCI backplane with up to 4 channels of flexible, full or single function, dual redundant MIL-STD-1553 communication. The full function version provides concurrent operation as a Bus Controller (BC), 31 Remote Terminals (RT), and dual function Bus Monitoring (BM), while the single function version provides operation in one of above modes, including 31 Remote Terminals. The 1553-PCI3 equips the PCI bus system with a complete 1553 interface. This includes 1553A/1553B selections, pointer-driven transmit and receive buffers, extensive programmable event interrupts, and triggers. An available DMA option provides you with the flexibility of using multiple DMAs per message. Both versions include IRIG time code generator capability.





  • PCI/PCI-X Architecture
  • Standard IRIG time code generator
  • PCI 33/66 up to 266 MB/s
  • Multiple RT capability (Single Function version)
  • Up to 40 single ended discrete signals (TTL)
  • Up to 12 differential discrete signals (RS422)





Specifications

Form Factor
PCI
Application
Lab, Simulation, Test
Temp Range
Commercial
1553 # Channels
1 to 4
Analyzer
PASS
Operating Mode
Single/Multi-Function
IRIG Time Code Option
Yes
Variable Voltage
Yes
