AI Edge Computing with GPU
The SBC3902 single board computer is designed with the world’s most powerful AI edge computer, melding autonomous and embedded edge computing systems and real-time GPU processing in a small 3U VPX form factor.
Aligned with Sensor Open System Architecture (SOSA™) slot profile 14.2.16, the 3U VPX IO Intensive computing card offers the NVIDIA® Jetson AGX Orin™ module, delivering up to 275 TOPS of AI performance.
Powered by NVIDIA Jetson AGX Orin
The Jetson AGX Orin GPU includes 2048 NVIDIA CUDA® cores and 64 Tensor Cores, as well as DL and vision accelerators. Based on NVIDA Ampere Architecture, the module also delivers instantaneous data transfer, dedicated encode/decode capabilities, and deep learning (DL) algorithms.
Rugged, smart, and connected
The conduction-cooled SBC3902 single board computer is ideal for complex, IO-intensive applications that can benefit from GPU processing, including autonomous vehicles and tracking.

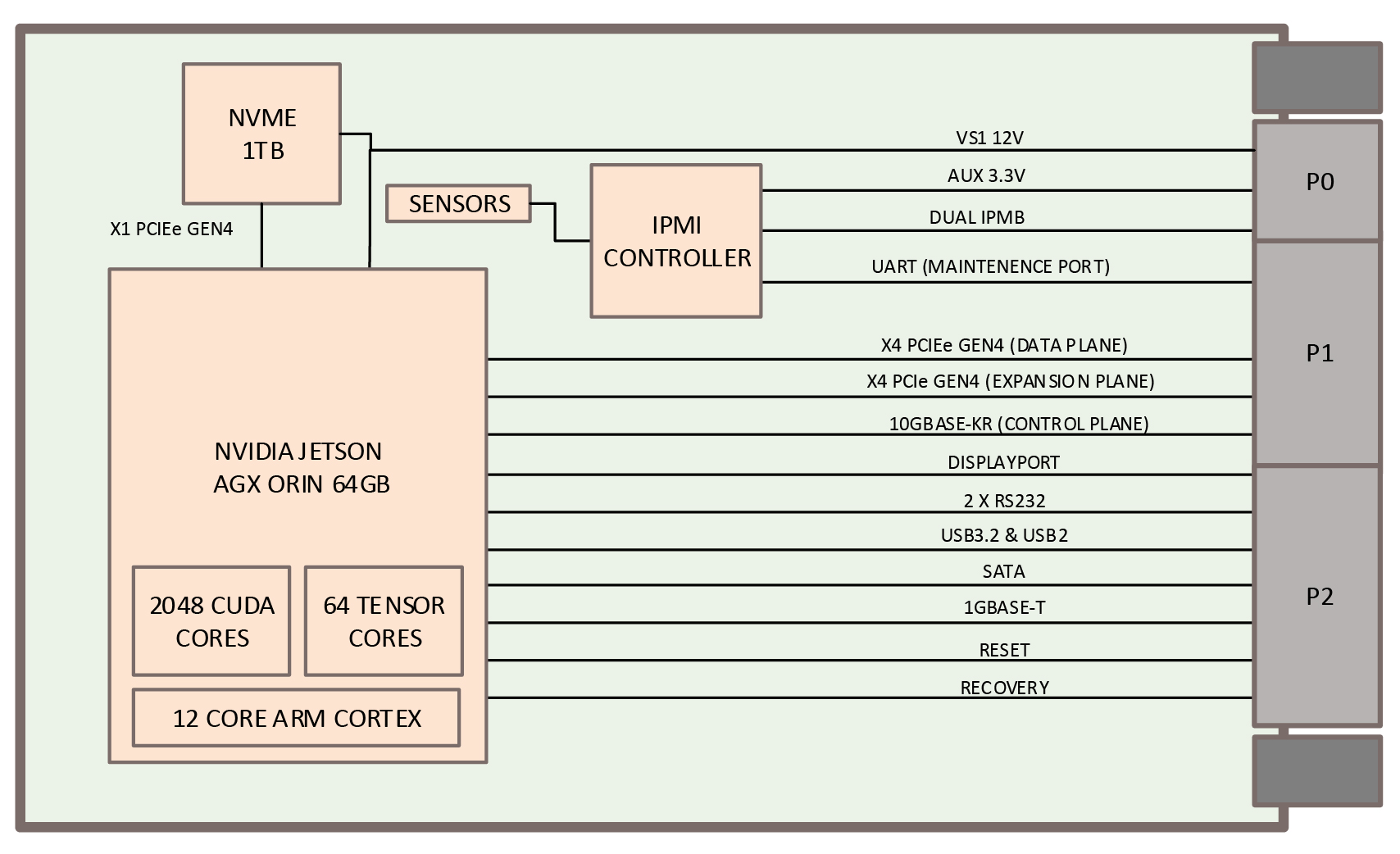

Its high-speed IO feeds multiple concurrent AI application pipelines, including USB3.2, DisplayPort and RS-232 serial ports, to complement 205 GB/s of memory bandwidth, 64 GB of DRAM, and 64GB eMMC internal storage. PCIe Gen 4 data and expansion and 10GbE control plane connectivity are also featured.
