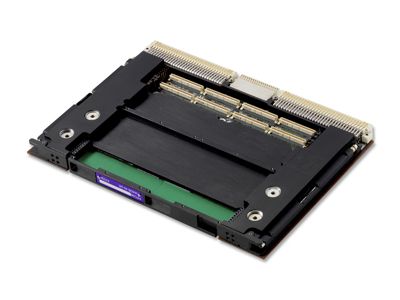

XtraPower PPCM1

6U VME Dual PowerPC 7457
XtraPower PPCM1

This product entered a Restricted Production Phase (RPP) on September 1, 2009

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

The architecture of PPCM1 loosely couples two fully independent processor nodes across a 64-bit PCI bus, providing the system architect with cost effective, high bandwidth processing units. PPCM1's architecture is also optimized for real-time operating systems, each node supporting its own entirely standard kernel. For multi-slot processing solutions, PPCM1 provides an opportunity for reducing system slot count, or for dramatically boosting the processing power within each slot. Each of the processing nodes features a Freescale 7457 processor with 512 KB on-chip L2 Cache, its own private L3 Cache and high bandwidth access to its own Flash and SDRAM, plus non-competing access to its own PMC site via a 64-bit/66 MHz PCI bus.



  • Five ruggedization levels, air- and conduction-cooled
  • Two independent processor nodes
  • 2x Freescale 7457 @ 1 GHz
  • 2x PMC slots
  • For Ruggedization Levels, please see the configuration guide under the downloads tab
  • P25X603 Rear Transition Module


Specifications

# Expansion Slots:
2
Bus Interface Chip
Tundra Universe II
Ethernet
10/100BaseT
Form Factor
VME 6U
Maximum Memory
2x 512 MB SDRAM with ECC
Processor
Dual 7457 @ 1 GHz
Ruggedization
Level 1-5 Air, Conduction Cooled, Level 1-5 Air, Conduction Cooled
Serial I/O
2
Transition Modules
P25X603
