VQG4 PowerPC VME

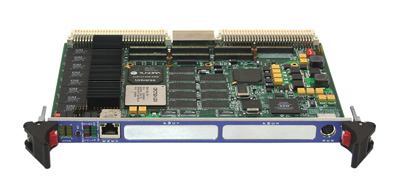

VQG4 is a high-performance quad G3 and G4 PowerPC VMEbus SBC
VQG4 PowerPC VME

This product entered a Restricted Production Phase (RPP) on February 15, 2008

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

Addressing multiple VME processing needs in a commercial environment poses unique challenges. The VQG4 is a high-performance quad G3 or G4 PowerPC VMEbus Single Board Computer specifically designed to support multi-processing applications in commercial environments. The board's architecture strikes a balance between processors sharing global memory and I/O resources and individual processors, each with its own dedicated memory resources.


  • Ruggedization: Commercial/extended temperature
  • Temperature: -20 to +65 C
  • OS Support: Linux and VxWorks
  • Watchdog Timers: 1x 32-bit
  • FSB: 100 MHz
  • 512MB SDRAM with ECC
  • Symmetric Multiprocessing (SMP) VME architecture
  • Dual PCI PMC Sites
  • Fast Ethernet
  • L2: 2 MB External
  • Single, Dual or Quad PowerPC 7410 CPU's with 2MB external cache
  • GPIO: Rear transition module
  • PCI over P0 PMC expansion
  • Benign or Extended Temperature Environment

Specifications

AXIS Support
Yes
Fabric Interface
N/A
Form Factor
VME 6U
Operating System (OS) Support
Linux
Processor
7410 @ 500 MHz
Ruggedization
Level 2 Ext. Temp. Air Cooled
