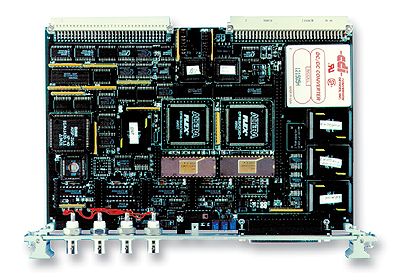

VME-4145

VME-4145 4-Channel 16-bit Arbitrary Waveform Generator

VME-4145

This product reached the end of its lifecycle (end-of-life) on September 11, 2018

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview


The VME-4145 Analog Output Board provides four high-quality analog output channels with 16-bit resolution. Each output has a dedicated D/A Converter (DAC), and can source or sink 10 mA at ±10 V. The analog outputs can be disconnected from the field wiring for off-line testing. Autocalibration and self-test are initiated by a VMEbus system reset or by execution of a software command.


  • Continuous, single burst, or burst/idle/burst waveform generation modes of operation
  • Autocalibration of all channels
  • Four-channel analog waveform generator
  • One 16-bit D/A converter per output

Specifications

Form Factor
VME
Function
16-bit DAC
Channels
4
Channel Voltage Ranges
0-5V, 0-10V, ±2.5V, ±5V, ±10V
Throughput
400 nS
