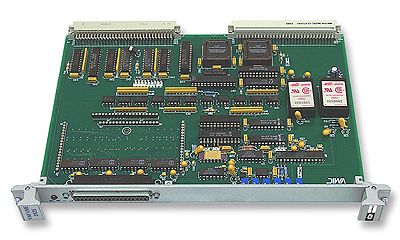

VME-3125

VME Analog I/O Input Boards

VME-3125

This product reached the end of its lifecycle (end-of-life) on March 1, 2010

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

We recommend the following alternative solutions:

Please visit GDCA for future order fulfilment. Visit Abaco’s PLM page for additional Abaco/GDCA partnership information.

Overview


Isolated Scanning 12-bit 32-Channel Analog-to-Digital Converter Board (6U) with Built-in-Test,


  • Applications: Instrumentation in 3U Form Factor, Isolated Analog Inputs, Isolated Transducer Inputs, Ground Loop Elimination, Data Acquisition Systems, Medium-Rate Voltage Monitoring, Process Monitoring, Temperature Monitoring
  • 1,000 V analog GND/digital GND isolator
  • Low pass input filters: 50 kHz, optional 40 Hz
  • Pull-down resistors prevent floating inputs
  • offset binary or two's complement
  • Overvoltage protected inputs
  • Selectable data coding
  • Input connector compatible with both discrete wire and ribbon cables
  • Jumper-programmable gains of x1, x10, x100
  • Selectable A/D ranges of +/-5 V, +/-10 V, 0 to +10 V
  • Supports real-time Built-in-Test
  • 40 kHz aggregate conversion rate
  • Input ranges from +/-50 mV to +/-10 V
  • Isolated channel-to-bus
  • common channel-to-channel
  • Autoscanning
  • continuously digitizes inputs and stores results in dual-ported data registers
  • 32 single-ended or 16 differential inputs
  • Operating Systems: Windows NT, Linux, VxWorks, QNX

Specifications

Form Factor
VME
Function
12-bit ADC
Channels
32 single ended

Accessories

CBL-040-x37 D-Sub 37pin AMP (Compatible Connector 747949-5) Cable
