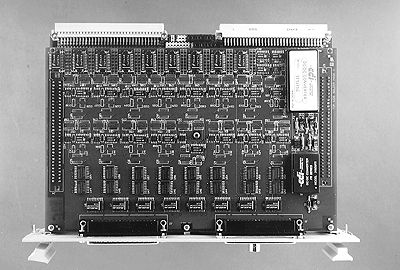

VME-3119

16-bit Scanning Analog Input Board

VME-3119

This product reached the end of its lifecycle (end-of-life) on December 4, 2005

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview


The VME-3119 analog input board provides 16 high accuracy differential analog input channels with high throughput 16-bit analog-to-digital(A/D) conversion. Each input is equipped with a dedicated programmable-gain amplifier (PGA), software selectable, fourth-order low pass filter,and autocalibration.





  • 16 differential analog input channels
  • Software-programmable gain per channel (x1, x10, x100, x1,000)
  • Input signal range from ±10 mV to ±10 V
  • Software-programmable fourth-order low pass filter (1 Hz, 10 Hz, 100 Hz, 1 kHz) factory option of Bessel or Butterworth response
  • Autocalibration per channel utilizing DSP technology
  • 16-bit A/D converter; high accuracy
  • Software-programmable sample rate from 305 Hz to 100 kHz aggregate
  • Software-programmable scan table
  • Large data buffer retains up to 4 million data samples
  • Overvoltage input protection
  • Flexible triggering: internal, external, or multiboard synchronous
  • VMEbus interrupts at mid scan or end scan
  • Two-slot configuration
  • UIOC® capability
  • Self-test





Specifications

Form Factor
VME
Function
16-bit ADC
Channels
16
