VME-2540 Intelligent Counter/Controller

24-channel slave I/O module
VME-2540

This product entered a Restricted Production Phase (RPP) on July 4, 2019

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

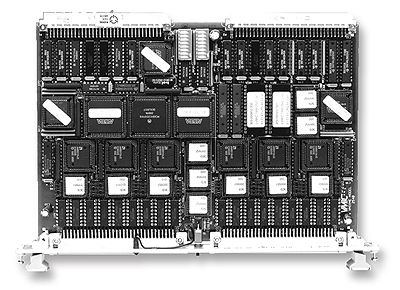

The VME-2540 Intelligent Counter/Controller (ICC) is a VMEbus slave I/O module designed to provide high-precision digital measurement and function generation capability for VMEbus systems with a simple, consistent memory-mapped user interface.


  • RS-422 differential interface with support for single-ended TTL inputs
  • Options allow configurations of 4, 8, 16, and 24 interfaces
  • On-board 15 MHz 68HC000 CPU
  • A32/A24/D32/D16/D8 (EO) VME slave interface, 64 Kbyte VMEbus memory window
  • Timer/periodic VMEbus interrupter - 0.0076 to 1,000 Hz
  • Quadrature position measurement - sin/cos up to 1 MHz, 32-bit counters, limit/modulo checking Integer period/pulse-width measurement 16- and 32-bit, discrete or continuous; low data transport lags
  • Square wave/pulse train generation - 0.0076 Hz to 2.5 MHz
  • Period/pulse-width measurement 400 ns to 8.5899 x 106s (32-bit floating point), 400 ns to 858s (32-bit unsigned integer)
  • Event counting - up to 4 giga events
  • Frequency measurement 1.16 x 10-3 Hz to 2.5 MHz

Specifications

Channels
24 Input/Output
Data Transfer Bits
8, 16, 24, 32
Form Factor
VME
I/O Voltage Range
RS-422, TTL
Interface
RS422
