VME-2120 Digital Output Board

64-bit High Voltage Digital Output with Built-in-Test

VME-2120 64-bit High Voltage Digital Output with Built-in-Test

This product reached the end of its lifecycle (end-of-life) on September 11, 2018

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview


VME-2120 64-bit High Voltage Digital Output with Built-in-Test. VMEbus specification compatible. Double height form factor.


  • 8-, 16-, or 32-bit transfers
  • High reliability DIN-type I/O connectors
  • Compatible with Intelligent I/O Controllers
  • Output clamp diodes for inductive flyback protection
  • High breakdown voltage (55V)
  • or inductive loads
  • Automatic surge current shutdown protection option
  • Thermal shutdown protection option for driving incandescent
  • High current drivers (600mA sink)
  • 64 bits of high voltage outputs

Specifications

Form Factor
VME
Channels
64 Output
Data Transfer Bits
8, 16, 32
I/O Voltage Range
5 to 55 VDC
Interface
High-voltage buffered outputs - Front I/O

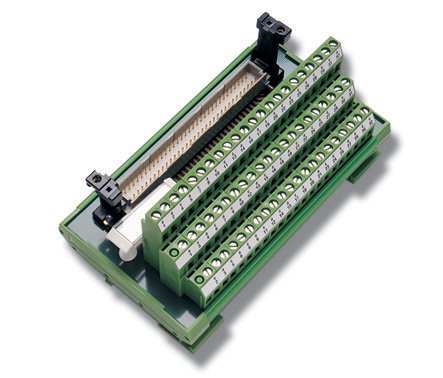

Accessories

VME-000-94-xxx IDC 64pin ITW Pancon 120-964-435 Cable
