V5D

High Performance 6U VME Embedded Computer

V5D

This product reached the end of its lifecycle (end-of-life) on September 1, 2010

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

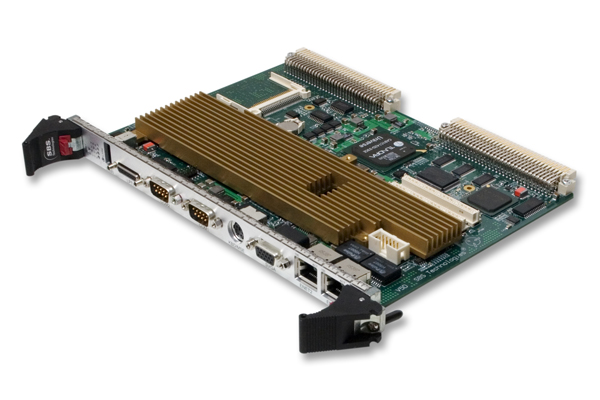

V5D, a member of the V5x family of 6U VME single board computers, offers an Intel Pentium M processor LV 738 that features 90nm technology with processing speed of 1.4 GHz. The V5D couples the Pentium M LV 738 with the Intel 855GME Chipset which includes the 855GME Graphics and Memory Controller Hub (GMCH) and the 6300ESB I/O Controller Hub (ICH). The 855GME GMCH provides a 400 MHz Front Side Bus interface and a memory controller with a 64-bit 266 MHz memory interface that services up to 1 GB of DDR SDRAM. It also includes an internal SVGA video controller with 2D and 3D graphics engines and a 350 MHz 24-bit RAMDAC that can drive an analog CRT monitor at resolutions up to 1600x1200.





  • 1.4 GHz low voltage Intel Pentium M processor
  • Pin-compatible with V5C single board computer
  • Hardware byte-swapping capability
  • 2x Gigabit Ethernet





Specifications

Form Factor
VME 6U
Processor
Low power CPUs
# Expansion Slots
0
Maximum Memory
Up to 1 GB SDRAM with ECC
Serial I/O
2
Transition Modules
VME-TB51
Bus Interface Chip
Tundra Universe IID
Ethernet
Gigabit Ethernet
Ruggedization
Commercial (benign)
