TS-PMC-3001

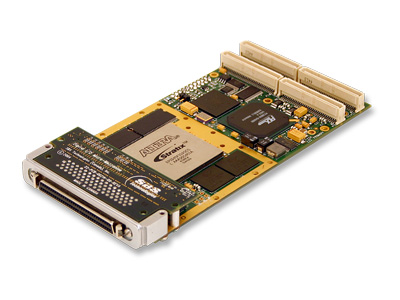

TS-PMC-3001 - PMC format FPGA co-processor card. Use with available I/O daughter cards (LVDS, RS-170) for data capture and processing, or as a co-processor with data input from a host CPU using the PCI bus interface.

TS-PMC-3001

This product reached the end of its lifecycle (end-of-life) on July 8, 2011

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview


The TS-PMC-3001 is an FPGA processor solution targeted at high performance military and commercial computing applications. The large Stratix FPGA and high bandwidth capability, make it ideal for video and image processing, software defined radio, radar, sonar as well as other high performance signal processing applications. The TS-PMC module uses a micro-mezzanine I/O concept to support off-the-shelf as well as custom I/O requirements. The micro-mezzanine offers the flexibility of front or rear panel connections.





  • User defined data can be routed through the P4 connection up to 1 Gigabytes/ sec
  • Stratix® EP1S30-C7 FPGA delivers superior processing performance
  • Micro-mezzanine I/O board allows for standard configuration and customization of I/O signals
  • Sensor Processing Resource Center





Article - The UAV Video Problem: Using Streaming Video with Unmanned Aerial Vehicles (Military & Aerospace Electronics July 2009)

Article - Fabric-Based Strategy Doubles Up on UAV Payload Functions (COTS Journal October 2008)

Article - Joint FPGA-DSP Grab, Squeeze, and Send Effort Sees Video Compression Success (DSP-FPGA.com December 2009)

Specifications

Form Factor
PMC
I/O
PMC P4
Chip Set
Altera Stratix FPGA
Conformal Coating
Option
Extended Temperature Range
Yes

Accessories

  • TS-PMC-3002N - Extended Temperature, Conduction-Cooled version
  • TS-PMC-3003I - Extended Temperature, Convection-Cooled version
  • TS-DK-ITK - Complete FPGA development kit for use with the TS-Series of FPGA Processors
