TS-IX-RSF01

TS-IX-RSF01 - RS-170 air cooled I/O daughter card with front-panel connectors for the TS-PMC series FPGA processor.

TS-IX-RSF01

This product reached the end of its lifecycle (end-of-life) on December 13, 2012

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

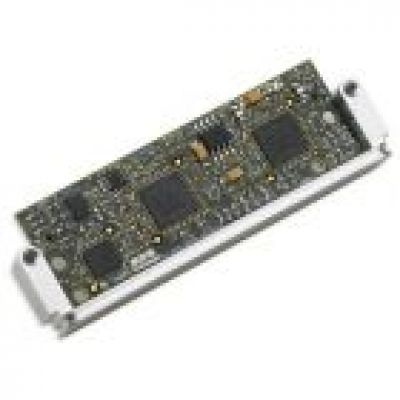

The TS-IX-RSF01 is a front panel RS-170 air cooled I/O daughter card. It provides two S-video inputs and one s-video output and can also be used to supply four domposite (CVBS) inputs and two composite (CVBS) outputs.

The mezzanine daughter card provides analog-to-digital conversion of NTSC/PAL video streams. Digital YCrCb video is made available to the base card, normally a TS-PMC, in ITU-T BT.656 format.

The TS-IX-RSF01 is ideal for demanding applications in pre-processing, video compression, Software-Defined Radio, radar, sonar and other high performance applications.















  • RS-170 air cooled I/O daughter card
  • Front panel connectors for the TS-PMC series FPGA processor
  • Two streams in and one stream out of RS-170 video available
  • Mezzanine daugher card provides analog-to-digital conversion of NTSC/PAL video streams. Digital YCrCb video is made available to the base card, normally a TS-PMC, in ITU-T BT .656 format
  • TS-Series of FPGA Processor PMC is ideal for RS-170 video and other camera-based applications
  • Sensor Processing Resource Center





Article - Fabric-Based Strategy Doubles Up on UAV Payload Functions (COTS Journal October 2008)

Article - The UAV Video Problem: Using Streaming Video with Unmanned Aerial Vehicles (Military & Aerospace Electronics July 2009)

Article - Joint FPGA-DSP Grab, Squeeze, and Send Effort Sees Video Compression Success (DSP-FPGA.com December 2009)

Specifications

Form Factor
PMC
I/O
RS-170
Conformal Coating
Option
Extended Temperature Range
Yes

Accessories

  • TS-DK-ITK - Complete FPGA development kit for use with the TS-Series of FPGA Processors
