TS-IX-RS01 RS-170 air cooled I/O daughter card with rear-panel connections for the TS-PMC series FPGA processor.


This product entered a Restricted Production Phase (RPP) on December 13, 2012

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all Restricted Production Phase products CLICK HERE.

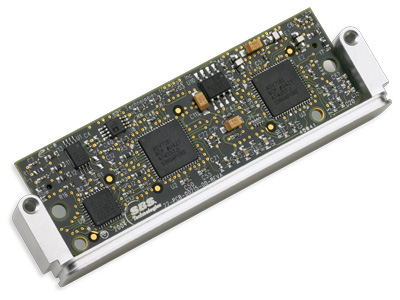

The TS-IX-RS01 mezzanine card is designed for operation with our TS-Series of FPGA PMC processors. This micro mezzanine module provides two input channels and one output channel of RS-170 NTSC/PAL video capture. The TS-IX-RS01 provides rear panel I/O and can be used for air cooled or conduction cooled applications. MPEG4 (ITU-T H.263) compression software is available as an integrated solution. Ideal for video compression, encryption and other processing applications.




  • Ideal for video capture, compression, encryption and general purpose image processing applications
  • Available software and firmware development kit to accelerate your application development.
  • Rear panel I/O for air cooled or conduction cooled applications
  • TS-IX-RS01 micro mezzanine for TS-Series of FPGA PMC processor
  • Two input channels, one output RS-170 supporting NTSC/PAL video formats
