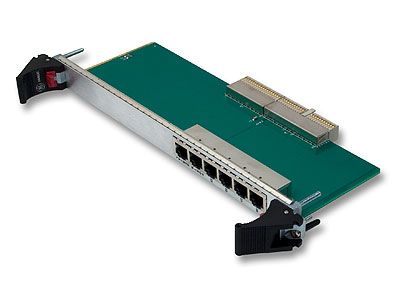

TRCP9XX-5RC-F Rear Transition Module for NETernity CP921RC-F Gigabit Ethernet Switch

TRCP9XX-5RC-F

This product reached the end of its lifecycle (end-of-life) on September 30, 2013

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.

Overview


TRCP9XX-5RC-F is a RoHS and PICMG 2.16 compliant form factor rear transition module (RTM) for the NETernity CP921RC-F Gigabit Ethernet switch. This RTM has four 10BaseT, 100BaseTX and 1000BaseT ports with RJ45 connectors, plus one serial confole port and one out of band network access port. One 10BaseT, 100BaseTX and 1000BaseT port is wired to the fabric-to-fabric link.



  • Four 10BaseT, 100BaseTX and 1000BaseT ports (switch ports 20-23) with RJ45 connectors
  • One 10BaseT, 100BaseTX and 1000BaseT port (switch port 24) wired to the fabric-to-fabric link
  • One Serial console port
  • One 10BaseT, 100BaseTX and 1000BaseT out of band network access port
  • PICMG 2.16 compliant form factor
  • RoHS compliant
  • Supports NETernity CP921RC-F
  • Ethernet/LAN Resource Center

Specifications

Form Factor
cPCI 6U
Port Type
10/100/1000BaseT
Ports
5
