TM-683

2 PMC rear panel I/O transition module for 6U CPCI
TM-683

This product entered a Restricted Production Phase (RPP) on February 25, 2019

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

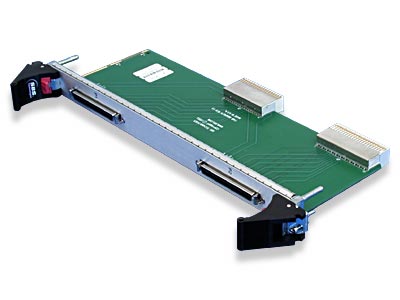

TM-683 is a transition module providing flexible access for the 128 lines of rear-panel I/O for our 6U CompactPCI carrier cards. Each of the two sets of 64 I/O lines is brought out to an individual high-density SCSI3-style 68-pin female connector allowing for individual connection to each module. This transition module contains no active components. It is compatible with CP-613, CP-620-5V, CP-630 and CP-640 carrier cards.


  • 80 mm deep with rear panel and ejection hardware
  • Interfaces via P3 and P5 CompactPCI connectors
  • Rear-panel I/O support for SBS 6U CompactPCI carriers
  • Supports high-speed signal pairs

Specifications

Form Factor
cPCI 6U
