Telum GE-QT

Telum GE-QT 4-port Gigabit Ethernet AdvancedMC NIC

Telum GE-QT

This product reached the end of its lifecycle (end-of-life) on December 27, 2011

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

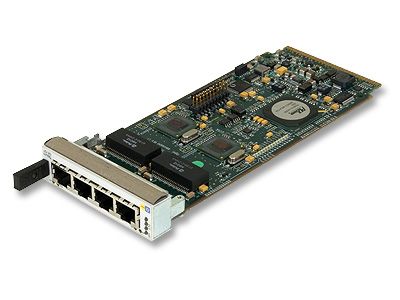

Telum GE-QT is a 4-port Gigabit Ethernet AdvancedMC NIC providing high bandwidth and high port density. It is ideal for telecommunication platforms requiring additional Ethernet links and AdvancedMC form factor. This AMC.0 R2.0 AdvancedMC offers greater design flexibility and maximizes port density on the carrier card and host board. The card uses a x4 PCI Express bus as the data bus and conforms to the AMC.1 specification. To reduce host CPU utilization, the AdvancedMC Ethernet controller supports TCP CRC and segmentation offloading. The Ethernet network interface complies with IEEE 802.3 specification and supports 10BaseT, 100BaseTX and 1000BaseT modes over CAT-5 or better twisted pair cable.



  • Software support available for Carrier Grade Linux
  • Full- or mid-size front panels
  • AMC.1 design using x4 PCI Express bus
  • 4 Gigabit Ethernet ports accessible through the front panel
  • TCP CRC calculation and segmentation offloading
  • IPMI controller fully compatible with the AMC specification
  • AMC.0 R2.0 AdvancedMC form factor
  • RoHS compliant
  • Ethernet/LAN Resource Center

Specifications

Form Factor
AMC
Port Type
10/100/1000BaseT
Media
Copper
Ports
4
Front Panel I/O Connectors
RJ-45
PCI Controller/ Ethernet MAC
Intel 82571EB

Accessories

M-GBI-SEI-ARP Linux media kit
