Telum 200-SATA

AMC.3 Serial ATA Hard Disk Drive AdvancedMC

RoHS Compliant

RoHS Compliant

Telum 200-SATA

This product reached the end of its lifecycle (end-of-life) on April 14, 2014

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.

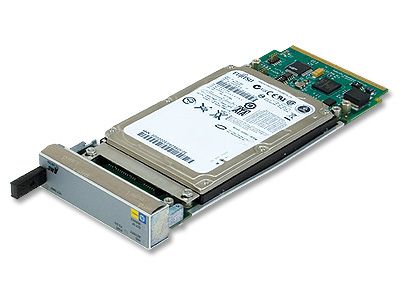

The Telum 200-SATA is a Serial ATA (SATA) hard disk drive AdvancedMC (AMC) designed for use with AdvancedTCA (ATCA) single board computers and carrier boards and MicroTCA platforms.Supporting SATA I and SATA II interfaces, the Telum 200 is available with a choice of drive types including SATA standard and continuous rotating drives and solid state drives with capacities up to 200 Gbytes. For maximum system design flexibility, the Telum 200 is available with compact, mid-size and full-size faceplates and optional conformal coating.

  • Support for Solaris 10, Linux, and Windows 2000/XP
  • Supports either Common Options Port 2 or Port 3 via switch setting or IPMI controller
  • IPMI v2.0 compliant Module Management Controller (MMC)
  • Serial ATA (SATA) hard disk drive with up to 200GB capacity
  • Support for SATA I (1.5Gb/s), SATA II (3.0Gb/s)
  • RoHS compliant


Form Factor
Serial ATA Hard Disk Drive Module
Up to 200GB
