TB3-TO-CMC-LP

TB3-TO-CMC-LP Thunderbolt™ 3 XMC/PMC Expansion Adapter Chassis

Overview


Use it for development, test or in the field

The TB3-TO-CMC-LP is an expansion adapter chassis using the Intel Thunderbolt 3 interface. The adapter allows the use of a front I/O XMC or PMC card outside its normal confines of a single board computer (SBC) or PC hosted carrier card. The TB3-TO-CMC-LP enables the deployment of XMC or PMC modules in systems previously unable to host them -- laptops, small form factor PCs, and other computers lacking add-in slots.



High speed, low latency

Thunderbolt 3 supports data transfer rates of up to 40 Gbps with extremely low latency that overcomes the chronic latency issues inherent in USB- and Ethernet-based remote devices.



For today - and tomorrow

Thunderbolt 3 provides a long-term solution, already found in the newest laptops and PCs. The Thunderbolt 3 interface is also being integrated in tomorrow’s processors and forms the architectural basis of future generations of the USB protocol, making it future-proof.



Also available with ARINC or MIL-STD-1553 interface module preinstalled and tested.

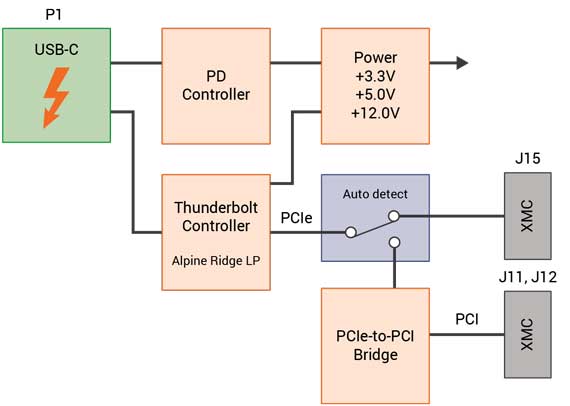

Block Diagram

Specifications

Form Factor
Thunderbolt 3
Application
Development, Lab, Simulation, Test, Notebook Portable, Portable
Cooling
Air, Conduction
Mezzanine
1x PMC/XMC
Temp Range
Commercial XT
Data Rate
40 Gbps
Other
Expansion adapter chassis using the Intel Thunderbolt 3 interface
Capacity
1 PMC/XMC
Control Interface
PCI, PCIe
Front I/O
Yes
RoHS
Yes
Ruggedization
Commercial/ extended temperature, Conduction Cooled

Accessories

Optional heatsink kit (for VITA 20 conduction cooled modules with primary and secondary thermal interfaces)

Optional bulkhead mount kit
