SCC

SCC - 19 inch Starter Cages for VME and CPCI
SCC

This product entered a Restricted Production Phase (RPP) on August 30, 2013

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

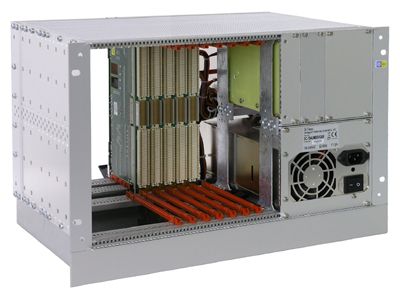

The SCC starter cages are either for VME64 or for CPCI boards in 4U or 7U form factor. The cages include two fans for reliable airflow and are equipped with a rear transition module. The integrated power supply delivers 400W or 650W (see list of available starter cages in the data sheet). A hard disk and DVD are integrated (except for the CM6 processor board). The CPU board needs to be ordered separately.

  • Rear transition module depending on ordered CPU board
  • Integrated DVD and hard disk
  • 400 or 650W power supply (depending on selected starter cage)
  • VME64 or CompactPCI for 4U and 7U boards

Specifications

Controller
Selectable
Fans
2
Form Factor
VME
Hard Disk
1
Height
4U or 7U
Power Supply
400W
Ruggedization
Level 1 Std. Air Cooled
Slots
Variable
